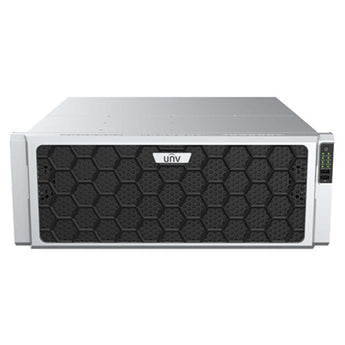

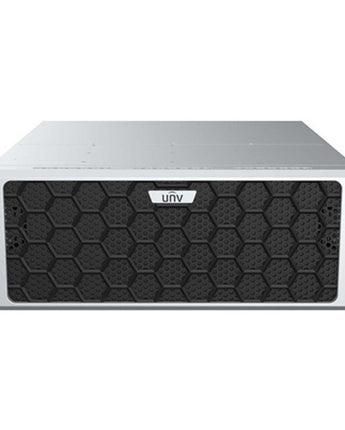

UNIVIEW Pro Series 256 Channel 24 HDDs RAID Network Video Recorder NVR824-256R

Overview

Engineered for high-capacity surveillance, the Pro Series NVR824-256R delivers robust performance for vertical markets. This 256-channel unit supports Ultra 265/H.265/H.264 video formats and features a comprehensive RAID array configuration for enhanced data security. The system accommodates up to 24 SATA HDDs with individual capacities reaching 16TB, ensuring extensive storage retention. Built-in redundancy includes dual power supply options and hot-swappable drive bays. Advanced decoding capabilities support up to 12 channels at 8MP resolution simultaneously. The unit integrates smart technologies like ANR to maintain recording continuity during network interruptions. Designed for reliability, it supports third-party cameras via ONVIF compliance and offers flexible interface options including HDMI, VGA, and extensive alarm I/O.

Model	NVR824-256R
Video Input Channels	256
Hard Disk Drive Bays	24 SATA
Max HDD Capacity	16TB per HDD
Incoming Bandwidth	768 Mbps
Outgoing Bandwidth	768 Mbps
Decoding Capability	12x 8MP @ 30fps
Video Compression	Ultra 265 / H.265 / H.264
RAID Support	0, 1, 5, 6, 10, 50, 60
Network Interface	4x RJ45 10M/100M/1000M
USB Interface	Front: 2x USB 2.0, Rear: 2x USB 3.0
Power Supply	100-240V AC, 50/60Hz
Dimensions	533mm x 484.6mm x 175.5mm
Weight	12.5 kg
Operating Temperature	-10°C to +55°C
