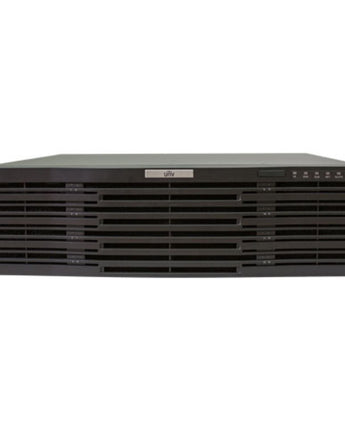

UNIVIEW Pro Series 128-Channel Network Video Recorder 512Mbps Input 16-SATA HDD RAID NVR516-128

Overview

The UNV NVR516-128 Pro Series Network Video Recorder delivers enterprise-grade surveillance management for large-scale installations. Supporting up to 128 IP camera channels with a massive 512Mbps incoming bandwidth, this unit ensures smooth recording and playback of high-resolution streams up to 12MP. The chassis features 16 SATA interfaces, allowing for up to 160TB of storage capacity when populated with 10TB drives, and supports configurable RAID 0, 1, 5, 6, 10, 50, and 60 schemes for enhanced data redundancy. Equipped with dual HDMI and VGA outputs, it facilitates independent monitoring setups, while the redundant power supply option ensures continuous operation in critical environments.

Model	NVR516-128
Series	Pro Series
IP Video Input	128 Channels
Incoming Bandwidth	512 Mbps
Outgoing Bandwidth	384 Mbps
Recording Resolution	Up to 12MP
SATA Interfaces	16 Ports
Max Storage Capacity	160TB (16 x 10TB)
RAID Support	0, 1, 5, 6, 10, 50, 60
Video Output	2-ch HDMI, 1-ch VGA
Network Interface	4 x RJ-45 10M/100M/1000M, 2 x 1000M SFP
Power Supply	100-240V AC, 50/60Hz (Redundant Optional)
