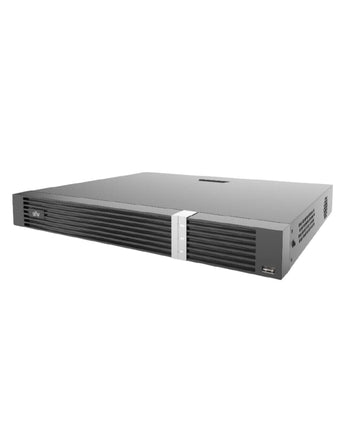

UNIVIEW Prime Series 9CH Black AI NVR UNVNVR302-09E2-IQ

Overview

The Uniview Prime Series 9CH Network Video Recorder delivers robust surveillance management for small to medium installations. Engineered with AI capabilities, this unit supports up to 12MP resolution recording and features a 320Mbps incoming bandwidth to handle high-definition streams efficiently. The system includes dual SATA HDD bays, accommodating up to 8TB per drive for extended local storage retention. Equipped with HDMI and VGA outputs supporting 4K resolution, it ensures clear live view and playback monitoring. The recorder supports ONVIF Profile S, G, and T, ensuring seamless integration with mainstream IP cameras. Advanced features include ANR technology for storage reliability during network interruptions and various fish-eye dewarping modes for comprehensive situational awareness.

Model	UNVNVR302-09E2-IQ
Series	Prime Series
Channel Count	9 Channels
Max Resolution	12MP
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	320Mbps
Video Input	9-ch IP Video
Audio Input	1-ch RCA
HDD Bays	2 x SATA
Max HDD Capacity	8TB per bay
Video Output	1x HDMI, 1x VGA
Output Resolution	Up to 4K (3840x2160)
Network Interface	2x RJ45 10M/100M/1000M
USB Ports	2x Front, 2x Rear
Power Supply	12V DC
Power Consumption	≤15W (without HDD)
Dimensions	320mm x 240mm x 45mm
Weight	2.5kg
Operating Temperature	-10°C to +55°C
Warranty	3 Years
