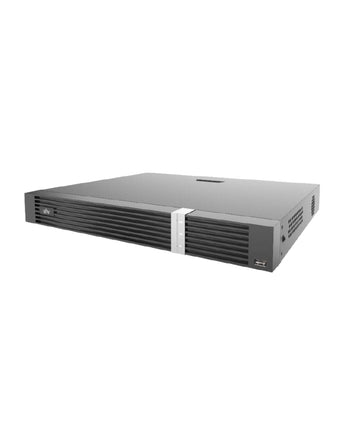

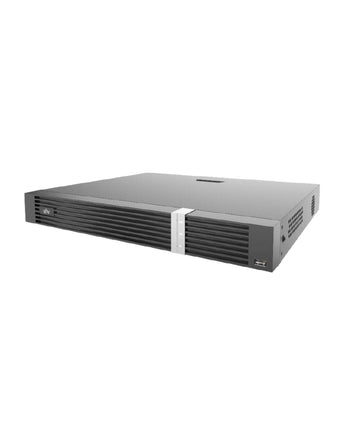

UNIVIEW Prime Series 9-Channel Network Video Recorder 12MP 320Mbps 2-SATA NVR302-09E2-IQ

Overview

The Uniview Prime Series NVR302-09E2-IQ delivers robust surveillance management for up to 9 channels with support for resolutions up to 12MP. Featuring a 320Mbps incoming bandwidth and dual SATA interfaces, this unit ensures reliable storage and high-performance recording for demanding security environments. Advanced H.265+ compression optimises storage efficiency while maintaining video clarity. The system supports ONVIF Profile S, G, and T, ensuring broad compatibility with third-party cameras. Built-in intelligent video analysis (IVA) capabilities include intrusion detection, line crossing, and object removal alerts. HDMI and VGA outputs provide flexible monitoring options, and the unit supports remote access via mobile and desktop clients for comprehensive site oversight.

Model	NVR302-09E2-IQ
Series	Prime Series
Video Input Channels	9 Channels
Max Resolution	12MP
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	320Mbps
Storage Interface	2 x SATA
Max Capacity per HDD	8TB
Video Compression	H.265 / H.264
Network Protocol	ONVIF (Profile S/G/T)
Video Output	1 x HDMI, 1 x VGA
Audio Input/Output	1-ch RCA
Network Interface	1 x RJ45 10M/100M Self-adaptive
USB Interface	2 x USB 2.0
Power Supply	12VDC 3.3A
Power Consumption	≤ 12W (without HDD)
Dimensions	380mm x 325mm x 53mm
Weight	1.81kg
Operating Temperature	-10°C to +55°C
Certification	CE, FCC, UL
