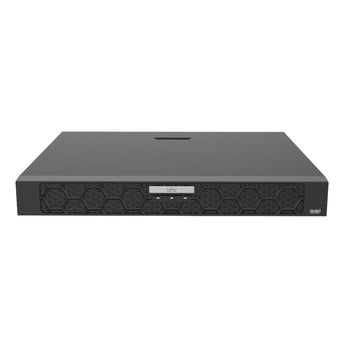

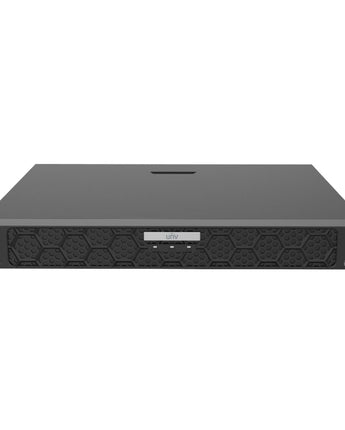

UNIVIEW Prime Series 8CH Network Video Recorder Upto 16MP 320Mbps Input 2-SATA HDD NVR502-08B-P8

Overview

The Uniview NVR502-08B-P8 Prime Series Network Video Recorder delivers robust surveillance management for professional environments. This 8-channel unit supports up to 16MP resolution recording and handles a 320Mbps incoming bandwidth for high-performance video capture. Equipped with two SATA interfaces, it accommodates up to 6TB per HDD for extended storage retention. The system features ANR technology to ensure continuous recording even during network disconnections and supports mainstream ONVIF conformant cameras. Plug-and-play functionality with PoE network interfaces simplifies installation, while cloud upgrade capabilities keep the firmware current.

Video Input Channels	8-ch
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
HDD Interface	2 x SATA
Max HDD Capacity	6TB per HDD
Video Output	1 x HDMI, 1 x VGA
Audio Input	1-ch, RCA
Audio Output	1-ch, RCA
Network Interface	1 x RJ45 10M/100M/1000M
Dimensions	380mm x 322mm x 53mm
Weight	2.68kg (without HDD)
Power Consumption	≤15W (without HDD)
Operating Temperature	-10°C to +55°C
