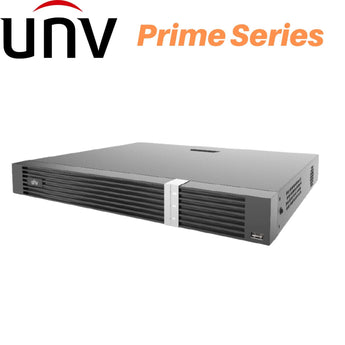

UNIVIEW Prime Series 8 Channel 2 SATA HDD Network Video Recorder UNVNVR302-08E2-P8-IQ

Overview

The UNVNVR302-08E2-P8-IQ is a robust 8-channel Network Video Recorder designed for high-performance surveillance. It supports up to 12MP resolution recording and features dual-stream technology for efficient bandwidth management. Equipped with two SATA interfaces, it accommodates up to 10TB of storage per disk. The unit includes advanced smart analytics such as intrusion detection and line crossing detection. With HDMI and VGA outputs, it ensures flexible monitoring options. The compact 1U chassis fits easily into standard racks, while the fanless design ensures quiet operation suitable for office environments.

Video Input	8-channel IP
Recording Resolution	Up to 12MP
Storage Interface	2 x SATA
Max Storage Capacity	20TB (2 x 10TB)
Video Output	1 x HDMI, 1 x VGA
Audio Input	1 x RCA
Network Interface	1 x RJ45 10M/100M
USB Interface	2 x USB 2.0
Power Supply	12V DC / 2A
Dimensions	330mm x 250mm x 50mm
Weight	1.85kg
Operating Temperature	-10°C to +55°C
