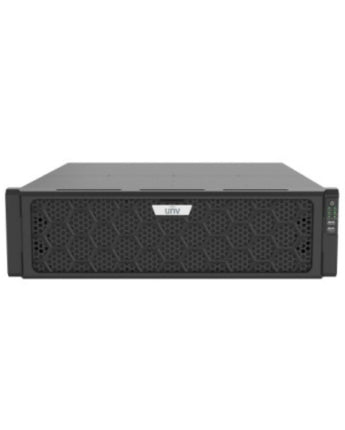

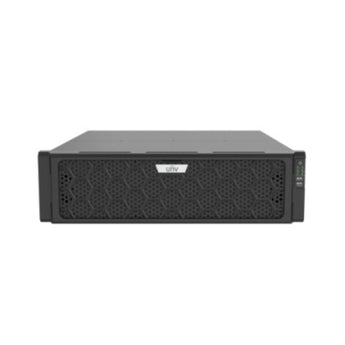

UNIVIEW Prime Series 64CH Network Video Recorder 16MP 640Mbps 16-SATA HDD NVR516-64E-R

Overview

Engineered for high-capacity surveillance, this 64-channel Network Video Recorder supports up to 16MP resolution and 640Mbps incoming bandwidth. The Prime Series unit features 16 SATA interfaces for extensive storage expansion, ensuring reliable data retention for large-scale deployments. Advanced video analytics include perimeter protection, people counting, and heat map generation to streamline security management. Dual HDMI and VGA outputs facilitate flexible monitoring configurations, while the robust metal chassis ensures durability in demanding environments.

Model	NVR516-64E-R
Series	Prime Series
Channels	64
Incoming Bandwidth	640 Mbps
Outgoing Bandwidth	640 Mbps
Resolution	Up to 16MP
Storage Interfaces	16 x SATA
Max Capacity	16TB per HDD
Video Output	2x HDMI, 1x VGA
Network Interface	2x RJ45 10M/100M/1000M
USB Ports	2x USB 3.0 (Front), 2x USB 2.0 (Rear)
Alarm I/O	16 In / 10 Out
Audio I/O	2 In / 2 Out
Power Supply	100-240V AC
Power Consumption	≤ 50W (without HDD)
Dimensions	482mm x 533mm x 131mm
Weight	≤ 8.26kg (without HDD)
Operating Temperature	-10°C to +55°C
Certification	CE, FCC, UL, RoHS
