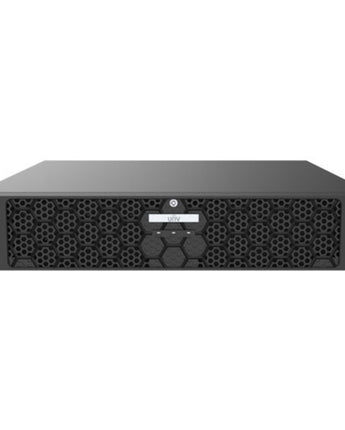

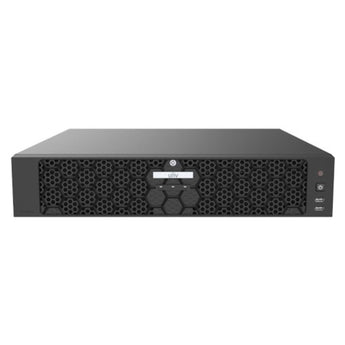

UNIVIEW Prime Series 64CH 32MP AI Network Video Recorder 384Mbps Input 8-SATA NVR508-64E-R-IQ

Overview

Engineered for high-density surveillance, this 64-channel Network Video Recorder delivers robust AI processing and 384Mbps incoming bandwidth. The Prime Series unit supports up to 32MP resolution decoding across eight SATA ports, facilitating extensive storage configurations via RAID 0, 1, 5, 6, and 10. Dual HDMI and VGA outputs enable flexible monitoring setups, while comprehensive alarm I/O and two-way audio integration ensure complete system control. Built for reliability, the chassis features efficient thermal management suitable for continuous 24/7 operation in demanding security environments.

Channels	64
Incoming Bandwidth	384 Mbps
Outgoing Bandwidth	384 Mbps
Decoding Capability	32MP @ 30fps
Video Output	2x HDMI, 1x VGA
Storage Interface	8x SATA Ports
Max Storage Capacity	Up to 16TB per HDD
RAID Support	RAID 0, 1, 5, 6, 10
Audio Input	16x Alarm In, 2x Audio In
Audio Output	10x Alarm Out, 2x Audio Out
Network Interface	2x 1000Mbps Ethernet
USB Interface	2x Rear USB
Power Supply	100-240V AC, 50/60Hz
Power Consumption	≤ 40W (without HDD)
Dimensions	440 x 460 x 88 mm
Weight	8.5 kg
Operating Temperature	-10°C to +55°C
