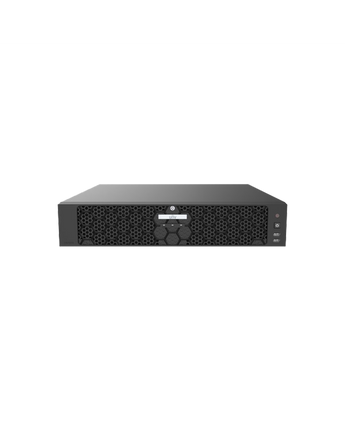

UNIVIEW Prime Series 64CH 16MP Network Video Recorder 640Mbps Input 16-SATA HDD NVR508-64E-R

Overview

Engineered for high-capacity surveillance environments, this 64-channel Network Video Recorder delivers robust performance with a 640Mbps incoming bandwidth. The unit supports recording resolutions up to 16MP and features 16 SATA interfaces for extensive storage expansion without internal HDDs included. Equipped with redundant power supply technology and ANR (Automatic Network Replenishment), it ensures continuous operation and data integrity. The chassis supports RAID 0, 1, 5, 6, and 10 configurations, providing flexible data protection strategies for commercial security installations.

Video Input Channels	64
Incoming Bandwidth	640 Mbps
Outgoing Bandwidth	640 Mbps
Max Recording Resolution	16 MP
SATA Interfaces	16
HDD Capacity Per Interface	Up to 16 TB
RAID Support	0, 1, 5, 6, 10
Video Output	2 HDMI, 2 VGA
Audio Input/Output	1 RCA / 1 RCA
Network Interface	2 RJ45 10M/100M/1000M Self-adaptive
USB Interface	3 USB 2.0, 1 USB 3.0
Power Supply	Redundant 100-240V AC, 50/60Hz
Power Consumption	≤ 60W (without HDD)
Operating Temperature	-10°C to +55°C
Dimensions	440mm x 470mm x 88mm
Weight	12.5 kg
