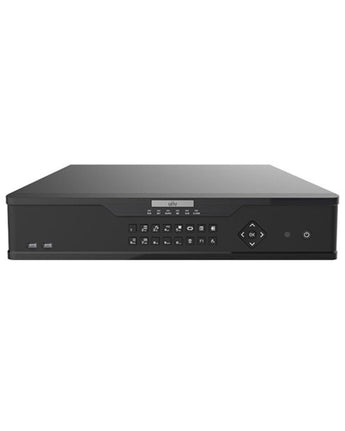

UNIVIEW Prime Series 64-Channel 8-SATA HDD RAID Network Video Recorder NVR308-64X

Overview

Engineered for large-scale surveillance deployments, this Prime Series Network Video Recorder delivers robust 64-channel management with high-bandwidth throughput. The unit features an 8-bay SATA interface supporting RAID 0, 1, 5, 6, and 10 configurations to ensure data integrity and redundancy. Capable of decoding up to 12MP resolution streams, it utilizes the H.265/H.265+ video compression standard to maximise storage efficiency. The system includes dual HDMI and VGA outputs for flexible monitoring setups and supports two-way audio communication. Designed for continuous operation, the chassis accommodates up to 80TB of total storage capacity across eight drives, making it an ideal central recording hub for commercial and industrial security networks.

Video Input Channels	64 Channels
Incoming Bandwidth	384 Mbps
Outgoing Bandwidth	384 Mbps
HDD Interfaces	8 x SATA
Max Capacity per HDD	10 TB
Total Max Capacity	80 TB
RAID Support	RAID 0, 1, 5, 6, 10
Decoding Capability	Up to 12MP
Video Compression	H.265 / H.265+
Network Interfaces	2 x RJ45 10M/100M/1000M Self-adaptive Ethernet
USB Interface	Front: 2 x USB 2.0, Rear: 1 x USB 2.0
Audio Input/Output	1-ch RCA Input, 1-ch RCA Output
Power Supply	100-240V AC, 50/60Hz
Power Consumption	< 25W (without HDD)
Dimensions	442mm x 453mm x 89mm
Weight	5.75kg (without HDD)
Operating Temperature	-10°C to +55°C
