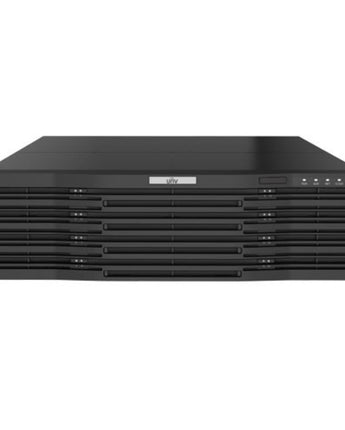

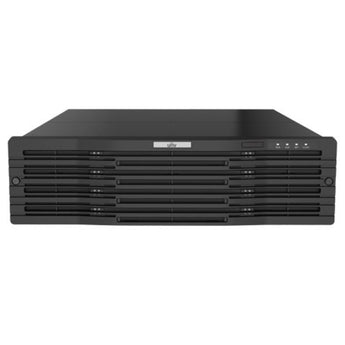

UNIVIEW Prime Series 64-Channel 16-Bay RAID Network Video Recorder NVR316-64R-B

Overview

The UNIVIEW Prime Series NVR316-64R-B delivers high-performance recording for large-scale surveillance projects. This 64-channel network video recorder supports up to 12MP resolution and features a robust 16-bay RAID storage architecture. Equipped with advanced ANR technology, it ensures continuous recording even during network disconnections. The unit supports multiple video output interfaces including HDMI and VGA for flexible monitoring setups. Designed for the SMB market, it offers reliable decoding capabilities and hot-swappable HDD support for minimal downtime maintenance.

Model	NVR316-64R-B
Series	Prime Series
Video Input Channels	64 Channels
Max Resolution	12 Megapixels
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
HDD Bays	16 SATA Interfaces
Max Capacity per HDD	10 TB
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Video Output	2x HDMI, 1x VGA, 1x HDMI2 (4K)
Audio Output	1-ch RCA
Network Interface	2x 1000M Adaptive Ethernet
USB Interface	Front: 1x USB 3.0, 1x USB 2.0; Rear: 2x USB 3.0
Power Supply	100-240V AC, 50/60Hz
Power Consumption	≤ 85W (without HDD)
Operating Temperature	-10°C to +55°C
Dimensions	445mm x 470mm x 88mm
Weight	12.5 kg
