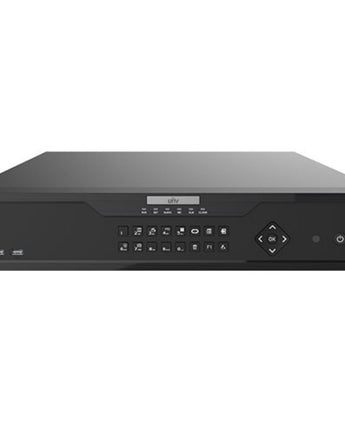

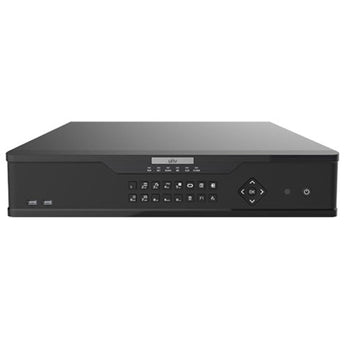

UNIVIEW Prime Series 32-Channel Network Video Recorder 12MP 384Mbps 4-SATA RAID NVR NVR304-32X

Overview

Engineered for robust surveillance, the Uniview Prime Series NVR304-32X delivers high-performance recording for up to 32 IP camera channels. Supporting 12MP resolution and a 384Mbps incoming bandwidth, this unit ensures crystal-clear footage capture for large-scale security systems. The integrated RAID 5 support across four SATA bays provides critical data redundancy, safeguarding recordings against drive failure. With dual Gigabit Ethernet interfaces and comprehensive smart analytics including intrusion detection and line crossing, this recorder offers reliable network management and intelligent event triggering for commercial and industrial applications.

IP Channel Input	32 Channels
Incoming Bandwidth	384 Mbps
Outgoing Bandwidth	384 Mbps
Video Input Resolution	Up to 12MP
HDD Interface	4 x SATA
Max HDD Capacity	10TB per HDD
RAID Support	RAID 0, 1, 5
Network Interface	2 x RJ45 10M/100M/1000M
Video Output	1 x HDMI, 1 x VGA
Power Supply	100-240V AC
Power Consumption	≤ 25W (without HDD)
Dimensions	442 x 420 x 88mm
Weight	5.7kg (without HDD)
Operating Temperature	-10°C to +55°C
