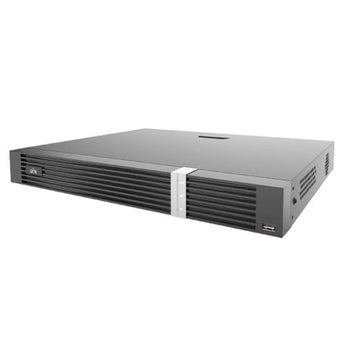

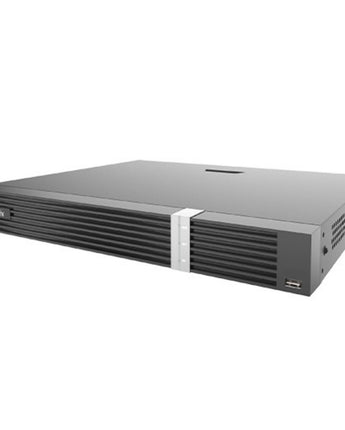

UNIVIEW Prime Series 16-Channel NVR 12MP 160Mbps 2-SATA HDD NVR302-16E2-P16-IQ

Overview

The Uniview Prime Series NVR302-16E2-P16-IQ delivers high-performance video management for demanding surveillance environments. Engineered to handle up to 16 channels of IP video input, this recorder supports resolutions up to 12MP, ensuring exceptional image clarity. With a robust incoming bandwidth of 160Mbps and dual Gigabit Ethernet ports, the system maintains stable data transmission even under heavy network loads. The unit features two SATA interfaces, allowing for substantial local storage expansion to meet extended retention requirements. Advanced H.265+ compression technology optimises storage efficiency without compromising video quality. Built-in intelligent video analysis capabilities, including intrusion detection and line crossing, enhance security monitoring by automating event alerts. The HDMI and VGA outputs support 4K resolution, providing a crisp interface for live viewing and playback via mouse or web browser.

Video Input Channels	16-ch
Max Resolution	12MP
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
Storage Interface	2 x SATA
Max Storage Capacity	10TB per HDD
Video Compression	H.265 / H.264
Network Interface	2 x RJ45 1000M Self-adaptive
Video Output	1 x HDMI, 1 x VGA
Audio Input/Output	1-ch RCA / 1-ch RCA
Power Supply	DC 12V/2.5A
Power Consumption	≤ 15W (without HDD)
Dimensions	380mm x 318mm x 53mm
Weight	3.5kg
Operating Temperature	-10°C to +55°C
