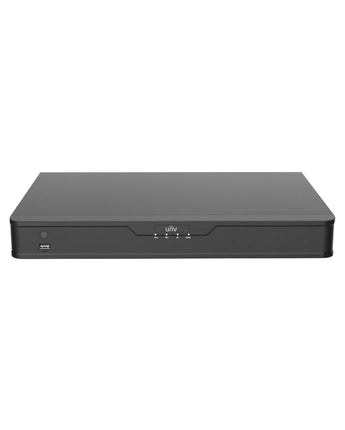

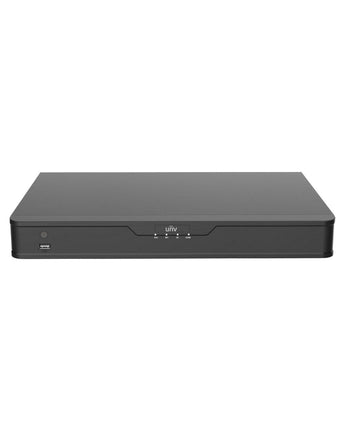

UNIVIEW Prime Series 16 Channel 12MP Network Video Recorder 4TB HDD NVR302-16E-P16-B

Overview

This 16-channel Prime Series Network Video Recorder delivers high-resolution surveillance recording up to 12 megapixels. It features built-in PoE interfaces for simplified plug-and-play installation and supports third-party IP cameras via ONVIF compliance. The unit accommodates two SATA hard drives with a total capacity of up to 10TB, ensuring extensive footage retention. Advanced H.265 video compression optimises storage efficiency while maintaining image clarity. Integrated smart detection algorithms provide face recognition, cross-line intrusion alerts, and people counting capabilities for enhanced security monitoring.

Video Inputs	16 Channels
Max Recording Resolution	12MP
PoE Support	Yes (16 independent ports)
PoE Range	Up to 260-300 metres
Storage Capacity	2 x SATA (Up to 10TB each)
Included Storage	4TB HDD
Bandwidth Capacity	320Mbps
Decoding Capability	3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
Video Compression	H.265 / H.264
Network Protocols	ONVIF, RTSP, TCP/IP, HTTP, DHCP, NTP
Alarm I/O	4 Alarm Input / 1 Alarm Output
Warranty	3 Years Manufacturer Warranty
