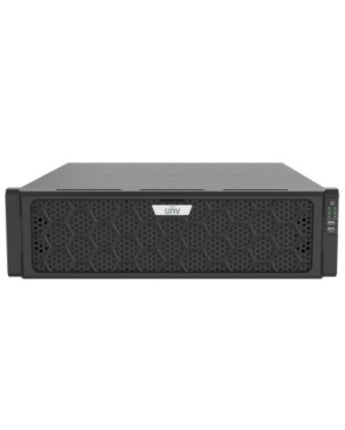

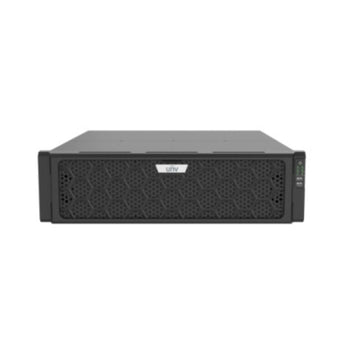

UNIVIEW Prime Series 128CH Network Video Recorder 640Mbps Input 16-SATA HDD NVR516-128E-R

Overview

Engineered for large-scale surveillance, the Prime Series NVR516-128E-R supports up to 128 channels with a massive 640Mbps incoming bandwidth. This unit features dual HDMI outputs capable of 8K and 4K resolution respectively, ensuring crystal-clear monitoring. Integrated ANR technology secures footage during network disruptions by caching video locally on cameras. The chassis supports 16 hot-swappable SATA drives for flexible RAID configurations and redundant power supplies for mission-critical uptime.

Model	NVR516-128E-R
Series	Prime Series
Channel Capacity	128 Channels
Incoming Bandwidth	640 Mbps
Outgoing Bandwidth	640 Mbps
Video Input	128-ch IP Video Input
Video Compression	Ultra 265, H.265, H.264
Decoding Capability	2x32MP@30fps, 4x16MP@30fps, 8x8MP@30fps
Video Output	2x HDMI (8K/4K), 1x VGA
Audio Input/Output	1-ch RCA Input, 2-ch RCA Output
Storage Interface	16x SATA Interfaces
Max Storage Capacity	Up to 18TB per HDD
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network Interface	2x 1000M Ethernet
USB Interface	3x USB 3.0, 1x USB 2.0
Power Supply	Redundant 1+1 Power Supply
Power Consumption	≤50W (without HDD)
Dimensions	482 x 533 x 131 mm
Weight	≤8.5kg (without HDD)
Operating Temperature	-10°C to +55°C
