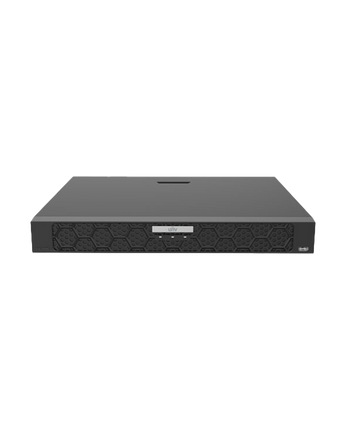

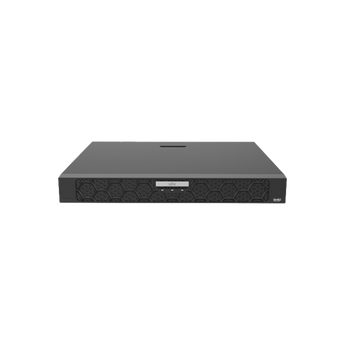

UNIVIEW NVR502 16CH PoE 16MP 2-SATA HDD 4K HDMI/VGA P2P Network Video Recorder NVR502-16B-P164TB

Overview

This 16-channel Network Video Recorder delivers robust surveillance management with support for up to 16MP resolution recording. The unit features 16 PoE ports for direct camera connectivity and includes a pre-installed 4TB surveillance-grade hard drive for immediate storage deployment. Dual SATA HDD bays allow expansion up to 10TB per disk to accommodate extended retention periods. The system supports H.265 compression to optimise bandwidth and storage efficiency while maintaining high-definition video quality. HDMI and VGA outputs enable flexible monitoring setups on local displays. P2P cloud technology facilitates secure remote viewing via mobile devices without complex network configuration. Designed for small to medium business environments, this recorder ensures reliable 24/7 operation with comprehensive playback and backup capabilities.

Video Inputs	16 Channels
Max Recording Resolution	16MP
PoE Ports	16 Ports
HDD Capacity	4TB Included
Max HDD Support	2 x 10TB
Video Output	HDMI, VGA
Compression Standard	H.265
Network Interface	1 x RJ45 10/100/1000 Mbps
Power Consumption	< 40W (without HDD)
Operating Temperature	-10°C to +55°C
