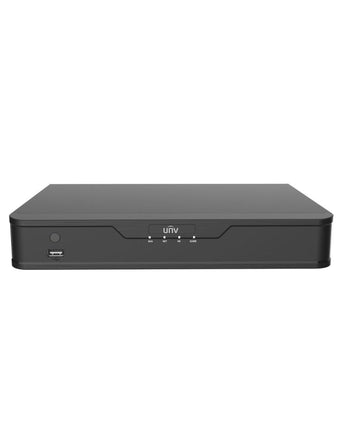

UNIVIEW NVR301 Series 4-Channel PoE Network Video Recorder 8MP 4K Ultra HD NVR301-04-P4

Overview

The UNIVIEW NVR301-04-P4 is a 4-channel Network Video Recorder designed for high-resolution surveillance systems. It supports up to 8MP (4K Ultra HD) IP cameras and features four independent PoE network interfaces for simplified plug-and-play installation. The unit includes dual video outputs via HDMI and VGA, allowing simultaneous monitoring at resolutions up to 4K. Built-in storage capabilities include support for one SATA hard drive up to 10TB and two USB ports for backup. The recorder utilises H.265/H.264 video formats to optimise bandwidth and storage efficiency. Remote access is enabled through the EZView mobile application for iOS and Android, providing live viewing and playback functionality. This unit is suitable for small business or residential security setups requiring reliable 4K recording and PoE connectivity.

Model	NVR301-04-P4
Video Inputs	4 Channels
Max Resolution	8MP (4K Ultra HD)
PoE Support	Yes, 4 Independent Interfaces
Video Output	1x HDMI, 1x VGA
HDMI Resolution	Up to 4K (3840x2160)
Storage Interface	1x SATA (Up to 10TB)
Network Interface	1x RJ45 10M/100M Self-adaptive
USB Interface	2x USB 2.0
Power Supply	48V DC
Power Consumption	7.5W (Without HDD)
Dimensions	260mm x 210mm x 44mm
Weight	1.12 kg
Operating Temperature	-10°C to +55°C
Warranty	3 Years
