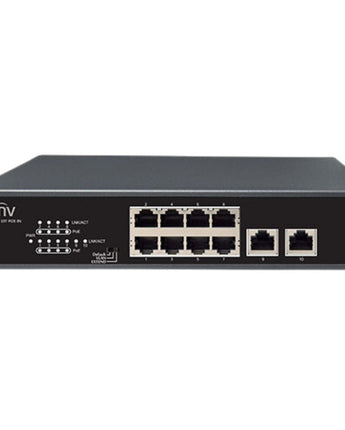

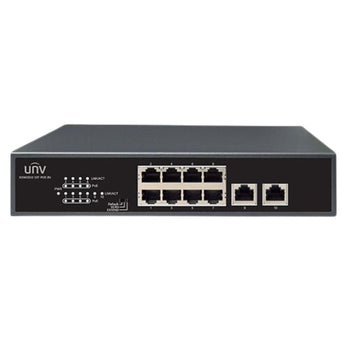

UNIVIEW NSW2010-10T-POE-IN 8 Port PoE Switch 120W

Overview

This 10-port unmanaged Layer 2 PoE switch provides a total power budget of 120W across eight PoE ports. It features a robust metal housing designed for reliable operation in temperatures ranging from 0 to 45 degrees Celsius. The unit supports multiple working modes including Normal, Secure, and Surveillance to optimise network performance for various business needs. Integrated surge protection and buffer optimisation ensure stable data transmission for connected IP cameras and wireless access points.

Model	NSW2010-10T-POE-IN
Ports	8 x 10/100Mbps PoE Ports, 2 x 10/100Mbps Uplink Ports
PoE Standard	IEEE 802.3af/at
Total PoE Budget	120W
Max Power Per Port	30W
Switching Capacity	2Gbps
Forwarding Rate	1.49Mpps
Packet Buffer	1.625Mbit
MAC Address Table	4K
Material	Metal
Dimensions	220mm x 150mm x 44mm
Weight	1.22kg
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	0°C to 45°C
Working Modes	Normal, Secure, Surveillance
