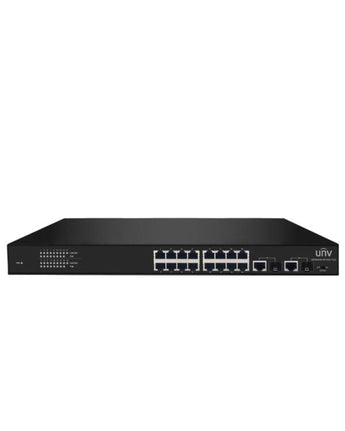

UNIVIEW NSW2000-16T2GC-POE 16-Port 10/100Mbps PoE Switch 250W

Overview

The Uniview NSW2000-16T2GC-POE is a robust 18-port PoE switch designed for reliable surveillance network deployment. It features 16 10/100Mbps PoE ports and 2 Gigabit combo uplink ports (RJ45/SFP), providing flexible connectivity options. The unit supports IEEE 802.3af/at standards with a total PoE budget of 250W, capable of delivering up to 30W per port. An integrated EXTEND mode increases transmission distance up to 250m for video surveillance applications. The metal housing ensures durability, while the fanless design allows for silent operation in indoor environments.

Model	NSW2000-16T2GC-POE
Port Configuration	16x 10/100Mbps PoE, 2x Gigabit Combo (RJ45/SFP)
PoE Standard	IEEE 802.3af/at
Max PoE Power Per Port	30W
Total PoE Budget	250W
Switching Capacity	8.8Gbps
Packet Forwarding Rate	6.55Mpps
MAC Address Table	4K
Extend Mode Distance	250m
Power Consumption	< 300W
Input Voltage	100-240V AC, 50/60Hz
Operating Temperature	0°C to 40°C
Dimensions	440mm x 220mm x 44mm
Material	Metal
Warranty	3 Years
