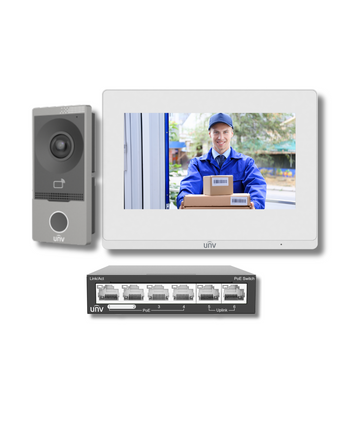

UNIVIEW KIT/201S/372S/NSW2020 IP Intercom Kit 2MP Door Station 7 Inch Touchscreen Monitor PoE Switch

Overview

This comprehensive IP video intercom solution is engineered for residential villas, apartments, and small commercial properties. The system integrates a 2 MP outdoor door station with a 7-inch touchscreen indoor monitor and a 6-port PoE switch to deliver secure two-way audio and video communication. Users can remotely unlock doors via the connected station or mobile app while enjoying live video viewing from network cameras. The kit supports IC card access, alarm integration, and flexible power options including PoE or 12 VDC. Robust construction features metal casings with IK08 and IP65 protection ratings for the outdoor unit, ensuring reliable performance in various weather conditions.

Indoor Monitor Model	OEI-372S-H-W
Outdoor Door Station Model	OEU-201S-HMK-W
PoE Switch Model	NSW2020-6T-POE-IN
Monitor Screen Size	7 inch TFT LCD
Monitor Resolution	1024 x 600 HD
Outdoor Camera Resolution	2 MP
Outdoor Viewing Angle	H 124.3° / V 67.5° / D 147.2°
Power Supply	PoE (IEEE 802.3af) or 12 VDC
Outdoor Protection Rating	IP65, IK08
PoE Ports	4 x PoE + 2 x Uplink
Connectivity	Wi-Fi, RJ45 Ethernet
Access Control	IC Card Reader, Mobile App
