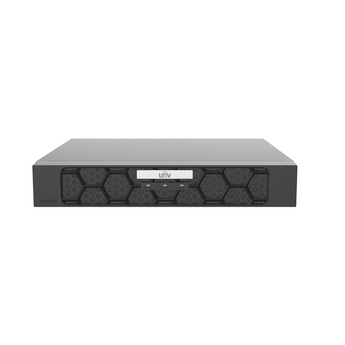

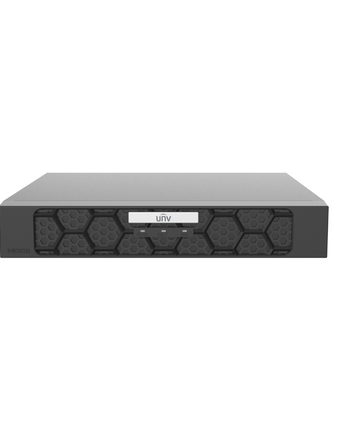

UNIVIEW IQ Series 16MP 16-Channel PoE Network Video Recorder 2-SATA HDD 4K HDMI Output NVR502-16B-P16-IQ

Overview

Engineered for high-performance surveillance, the Uniview NVR502-16B-P16-IQ delivers 16-channel 16MP recording with integrated Power over Ethernet. This unit features dual SATA drive bays supporting up to 16TB per disk for extensive storage retention. The system utilizes Ultra 265/H.265 compression to optimise bandwidth and storage efficiency without compromising video fidelity. Built-in Smart VCA capabilities enable face detection, vehicle recognition, and people counting directly at the recorder level. Dual HDMI and VGA outputs facilitate flexible monitoring configurations, while the rugged 1U chassis ensures reliable operation in demanding environments.

Video Input	16 Channels
PoE Ports	16 Ports (Built-in)
Max Recording Resolution	16MP
Decoding Capability	Up to 2 x 16MP / 4 x 4K / 10 x 3MP / 16 x 1080P
Incoming Bandwidth	320 Mbps (Smart On)
Outgoing Bandwidth	160 Mbps
HDMI Output	2 x HDMI (4K @ 30Hz)
VGA Output	1 x VGA (1920 x 1080)
Storage Interface	2 x SATA (RAID 1 Supported)
Max Storage Capacity	32TB (2 x 16TB)
Network Interface	1 x RJ45 (10/100/1000M)
USB Interface	1 x USB 2.0 (Front), 1 x USB 3.0 (Rear)
Power Supply	AC 100-240V
Power Consumption	≤ 40W (without HDD)
Dimensions	380mm x 322mm x 53mm
Weight	3.5 kg
Operating Temperature	-10°C to 50°C
Certifications	CE, FCC, UL, RoHS, WEEE
