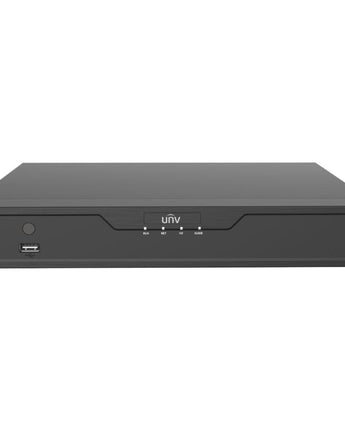

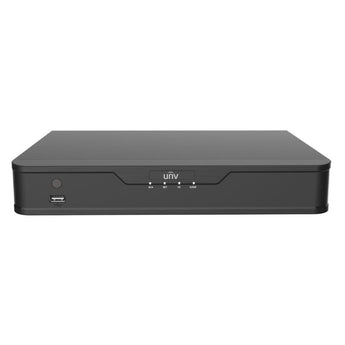

UNIVIEW Easy Series 8CH 8MP/4K 80Mbps Input 1-SATA HDD Network Video Recorder NVR301-08X-P8

Overview

The UNIVIEW NVR301-08X-P8 is an 8-channel Network Video Recorder designed for high-resolution surveillance systems. Supporting up to 8 megapixels (4K Ultra HD) per channel, this unit features 8 PoE ports capable of delivering long-distance power over Ethernet up to 300 metres. The PoE architecture ensures easy plug-and-play installation, while ONVIF conformance allows for the integration of third-party cameras. A built-in 1-SATA interface supports local storage for reliable footage retention. The fast decoding capability facilitates smooth searching and playback of recorded video, making it suitable for residential and small business security applications.

Channels	8
Max Resolution	8MP / 4K Ultra HD
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	80 Mbps
PoE Ports	8
PoE Standard	IEEE 802.3af/at
PoE Transmission Distance	Up to 300m
HDD Interface	1 x SATA
Video Output	1 x HDMI, 1 x VGA
Audio Input/Output	1 x RCA
Network Interface	1 x RJ-45 10/100/1000 Mbps
USB Interface	2 x USB 2.0
Power Consumption	≤ 15W (without HDD)
Dimensions	320mm x 250mm x 45mm
Weight	2.5 kg
