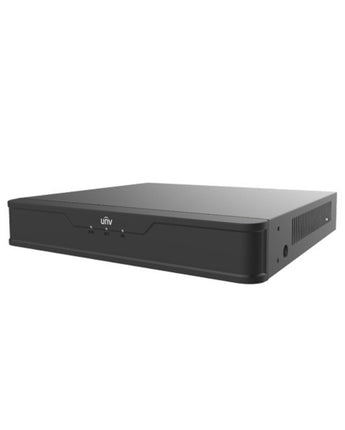

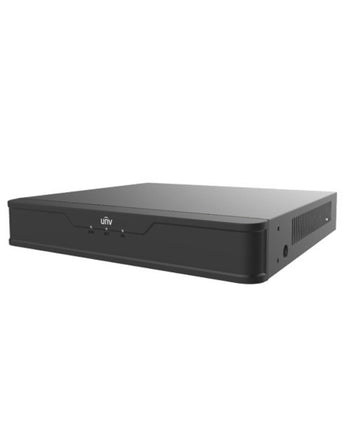

UNIVIEW Easy Series 8CH 8-PoE NVR 16MP 4K HDMI Output NVR501-08B-P8

Overview

The Uniview NVR501-08B-P8 Easy Series Network Video Recorder delivers professional surveillance performance for small to medium installations. Featuring 8 independent PoE ports, this unit supports plug-and-play camera installation with automatic detection and configuration. The recorder handles incoming bandwidth up to 80 Mbps and outgoing bandwidth of 64 Mbps, ensuring smooth streaming and playback. Video compression utilises Ultra H.265, H.265, and H.264 codecs to maximise storage efficiency while maintaining image quality. The device supports recording resolutions up to 16MP and provides 4K HDMI output for high-definition monitoring on compatible displays. Built-in ANR technology prevents video loss during network interruptions by storing footage locally on the camera before synchronising with the NVR. Cloud upgrade support enables remote firmware updates, while multi-browser compatibility allows access via Chrome, Edge, Firefox, and IE10/11. The unit includes one SATA drive bay supporting up to 8TB capacity for extended recording duration. Smart VCA functionality processes intrusion detection, line crossing, and people counting analytics directly through compatible cameras.

Model	NVR501-08B-P8
Series	Easy Series
Channels	8
PoE Ports	8 Independent
Max Recording Resolution	16MP
Video Output	4K HDMI, VGA
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	64 Mbps
Video Compression	Ultra H.265, H.265, H.264
Storage	1 SATA Drive (up to 8TB)
Network Interface	1 RJ-45 10/100/1000 Mbps
Power Consumption	≤15W (without HDD)
Dimensions	300mm x 210mm x 45mm
Weight	2.5 kg
Operating Temperature	-10°C to +55°C
