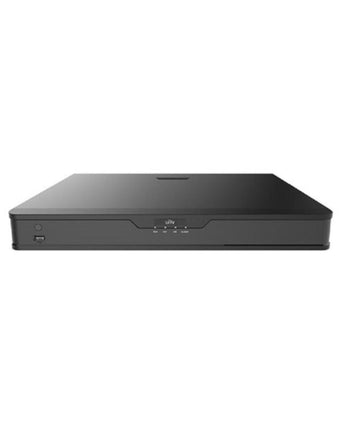

UNIVIEW Easy Series 8-Channel 8-Port POE 2-SATA Network Video Recorder NVR302-08E2-P8

Overview

The Uniview NVR302-08E2-P8 is a professional 8-channel network video recorder designed for high-resolution surveillance systems. This unit supports up to 12MP recording resolution and features an incoming bandwidth of 320Mbps, ensuring smooth handling of multiple high-definition camera feeds. Equipped with 8 built-in PoE ports, it simplifies installation by providing power and data connectivity directly to compatible IP cameras without the need for external switches. The device includes two SATA bays capable of supporting up to 10TB per drive for a total storage capacity of 20TB. Advanced compression technologies like Ultra265 and H.265 significantly reduce storage requirements while maintaining image quality. The NVR supports panoramic and fisheye camera de-warping modes and offers redundancy through ANR technology. With HDMI and VGA outputs supporting up to 4K resolution, this recorder provides clear live view and playback capabilities for comprehensive security monitoring.

Video Input Channels	8 Channels
PoE Ports	8 Ports
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
Max Recording Resolution	12 MP
SATA Interfaces	2 SATA Bays
Max Storage Capacity	20 TB (10TB per HDD)
Video Output	1-ch HDMI, 1-ch VGA
HDMI Resolution	Up to 4K (3840x2160)
Audio Input	1-ch RCA
Audio Output	1-ch RCA
Network Interface	1 RJ45 10M/100M/1000M Self-adaptive Ethernet
USB Interface	2 USB 2.0
Power Consumption	≤15W (without HDD)
Operating Temperature	-10°C to +55°C
Dimensions	325mm x 245mm x 52mm
Weight	2.5 kg
