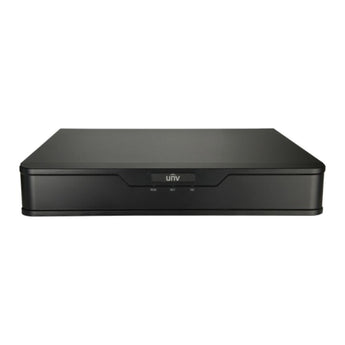

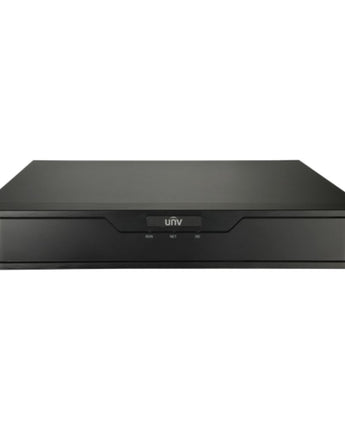

UNIVIEW Easy Series 4CH Network Video Recorder 8MP 80Mbps Input 1-SATA HDD NVR301-04X-P4

Overview

This professional 4-channel IP Network Video Recorder delivers high-performance surveillance management with built-in PoE and Ultra265 technology. Capable of supporting up to 8MP resolution across all channels, it ensures crisp image clarity and efficient bandwidth usage. The unit features a robust 80Mbps input bandwidth and includes one SATA interface for local storage expansion. Designed for reliability, the recorder supports ONVIF compliance for broad camera compatibility and offers versatile output options including VGA and HDMI. Its compact 1U form factor allows for flexible installation in server racks or desktop environments.

Model	NVR301-04X-P4
Series	Easy Series
Video Input Channels	4 Channels
Max Resolution	8MP (4K)
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	160 Mbps
SATA Interfaces	1
Max Capacity per HDD	10 TB
PoE Support	Yes (Built-in)
Video Output	1-ch VGA, 1-ch HDMI
Audio Input/Output	1-ch RCA / 1-ch RCA
Network Interface	1 RJ-45 10/100/1000 Mbps
Power Consumption	≤ 8 W (without HDD)
Dimensions	320 mm x 240 mm x 45 mm
Weight	1.5 kg (without HDD)
