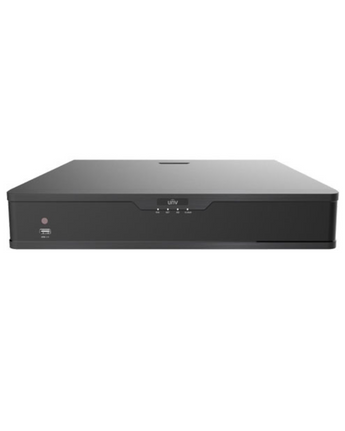

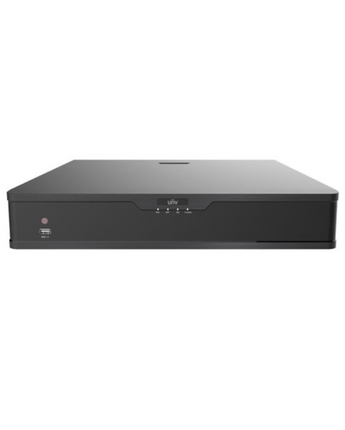

UNIVIEW Easy Series 32CH Network Video Recorder 8MP 160Mbps 4 SATA NVR304-32S-P16

Overview

This 32-channel Network Video Recorder delivers high-performance recording for extensive surveillance networks. Supporting up to 8MP resolution and a 160Mbps incoming bandwidth, it ensures clear capture from multiple cameras simultaneously. The unit features four SATA interfaces for substantial local storage capacity and RAID support to protect critical footage. H.265+ compression technology optimises bandwidth and storage efficiency without compromising image quality. Intelligent video analysis functions, including intrusion detection and line crossing, enhance security monitoring capabilities. The device supports plug-and-play installation for compatible IP cameras and offers flexible output options via HDMI and VGA. Built for reliability, this recorder is an essential component for commercial and large-scale residential security systems.

Model	NVR304-32S-P16
Series	Easy Series
Video Input Channels	32
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	320 Mbps
Video Output	1 HDMI, 1 VGA
HDMI Resolution	Up to 4K (3840x2160)
Decoding Capability	2x 8MP or 8x 4MP or 16x 1080P
Storage Interface	4 SATA Interfaces
Max Capacity per HDD	10 TB
Network Interface	1 RJ-45 10M/100M/1000M
USB Interface	Front: 1x USB 2.0, Rear: 1x USB 3.0
Audio Input/Output	1 RCA Input, 1 RCA Output
Power Supply	100-240V AC, 50/60Hz
Power Consumption	≤15W (without HDD)
Dimensions	325mm x 267mm x 45mm
Weight	2.5kg (without HDD)
Operating Temperature	-10°C to +55°C
Warranty	3 Years Manufacturer Warranty
