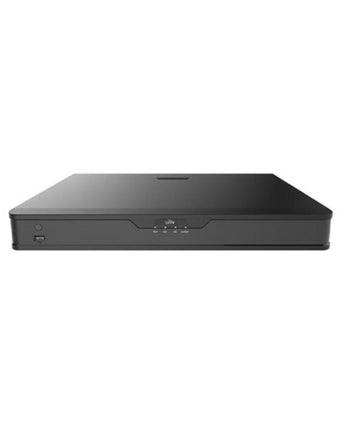

UNIVIEW Easy Series 16-Channel 320Mbps Input 12MP Network Video Recorder 2-SATA HDD NVR302-16E2-P16

Overview

The Uniview Easy Series NVR302-16E2-P16 is a robust 16-channel network video recorder designed for high-performance surveillance. It supports up to 12MP resolution recording and features a 320Mbps incoming bandwidth to handle multiple high-definition streams simultaneously. The unit includes two SATA interfaces for flexible storage expansion up to 6TB per HDD. Equipped with H.265/H.264 video compression, it optimises storage efficiency without compromising image quality. The device supports plug-and-play connectivity for IPCs and offers HDMI and VGA outputs for local monitoring. With built-in smart intrusion prevention and dual-stream support, this NVR ensures reliable security management for residential and commercial installations.

Channels	16-Channel
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
Video Input	16-ch IP
Two-Way Audio	1-ch, RCA
Video Output	1-ch HDMI, 1-ch VGA
Recording Resolution	Up to 12MP
Decoding Capability	1x 12MP@30, 2x 4K@30, 5x 4MP@30, 10x 1080P@30, 22x 720P@30
SATA Interfaces	2 SATA
HDD Capacity	Up to 6TB per HDD
Network Interface	2 RJ45 10M/100M/1000M
USB Interface	Front: 1x USB2.0, Rear: 1x USB2.0, 1x USB3.0
RS485	1
Alarm In	8-ch
Alarm Out	2-ch
Power Supply	DC 12V/2A
Dimensions	380mm x 315mm x 53mm
Weight	1.85kg (without HDD)
Operating Temperature	-10°C to +55°C
