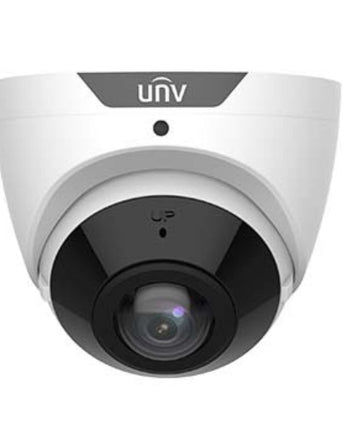

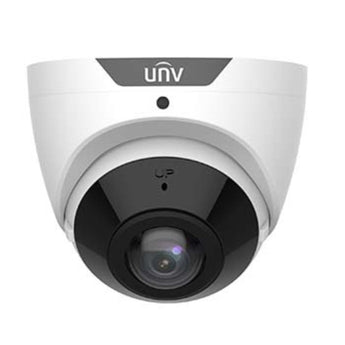

UNIVIEW 5MP 180° Wide Angle Intelligent IR Fixed Eyeball Network Camera IPC3605SB-ADF16KM-I0

Overview

Engineered for comprehensive perimeter monitoring, this 5MP Super Wide Angle camera delivers a 180° horizontal field of view, effectively covering areas equivalent to three standard cameras. The 1.68mm fixed lens ensures edge-to-edge clarity for large open spaces like warehouses, lobbies, and retail floors. Intelligent intrusion prevention algorithms distinguish between humans, vehicles, and irrelevant motion caused by animals or foliage, significantly reducing false alarms. With 120dB True WDR and Smart IR technology, the unit maintains high-quality imaging in challenging backlighting and low-light conditions up to 20 metres. The robust IP67 and IK10-rated housing guarantees reliable operation in harsh outdoor environments.

Resolution	5 Megapixel (2592 × 1944)
Lens Type	1.68mm Fixed Lens
Field of View	180° (Horizontal), 95° (Vertical), 360° (Diagonal)
Night Vision Range	Up to 20m (66ft) Smart IR
Wide Dynamic Range	120dB True WDR
Video Compression	H.265, H.264, MJPEG
Intelligence	Intrusion Detection, Cross Line Detection, Enter/Leave Area Detection
Storage	Micro SD/SDHC/SDXC (Up to 256GB)
Protection Rating	IP67 (Water/Dust), IK10 (Vandal Resistant)
Power Supply	12V DC ±25% / PoE (802.3af)
Dimensions	129.5mm × 129.5mm × 102.8mm
Weight	0.65 kg
