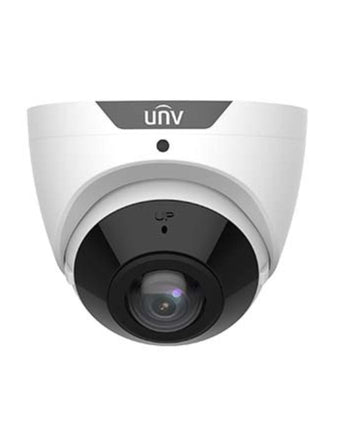

UNIVIEW 5MP 1/2.7" CMOS 16mm Wide Angle Intelligent IR Fixed Eyeball Network Camera IPC3605SB-ADF16KM-I0

Overview

Engineered for expansive coverage, this 5MP fixed eyeball network camera features a specialised 16mm lens providing a 100° horizontal wide-angle view. The Prime-I series sensor delivers superior low-light performance with Intelligent IR technology reaching up to 30 metres. Built-in WDR and 3D DNR ensure clear imagery in high-contrast environments, while the IP67 and IK10 rated housing guarantees durability against harsh weather and physical impact. Supporting H.265 compression and local microSD storage, this unit offers efficient bandwidth usage and reliable edge recording for residential and commercial security applications.

Sensor Type	1/2.7" CMOS
Effective Pixels	2592 (H) × 1944 (V)
Lens Type	Fixed Lens
Focal Length	16mm
Field of View	100° (Horizontal), 53° (Vertical), 122° (Diagonal)
IR Distance	Up to 30m (98ft)
Video Compression	H.265, H.264, MJPEG
Storage	MicroSD/SDHC/SDXC (Up to 256GB)
Audio I/O	1 In / 1 Out (Built-in Mic)
Protection Rating	IP67, IK10
Power Supply	12V DC ±25% / PoE (802.3af)
Dimensions	Ø110mm × 82.7mm
Weight	0.45kg (0.99lb)
