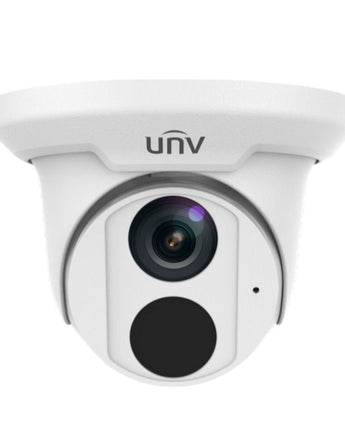

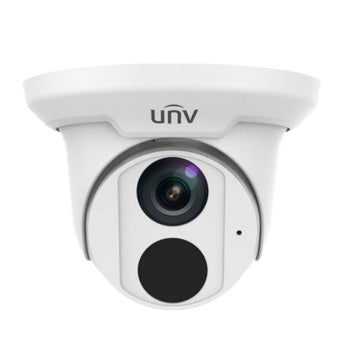

UNIVIEW 4MP 2.8mm Fixed Lens Turret Network Camera IP67 IK10 IPC3614SR3-DPF28M

Overview

Deliver reliable surveillance with the Uniview 4MP Turret Camera, designed for high-resolution monitoring in demanding environments. This unit features a 1/3" CMOS sensor capable of 4MP (2688 × 1520) resolution, ensuring clear identification of subjects. The fixed 2.8mm lens provides a wide field of view, ideal for covering entryways, driveways, and general perimeters. Built to IP67 and IK10 standards, the metal housing withstands dust, water immersion, and physical impact, making it suitable for both indoor and outdoor installation. Integrated H.265 compression reduces bandwidth and storage requirements without compromising image quality. The camera supports 12V DC and PoE power inputs for flexible deployment and includes 3D DNR and WDR technologies to maintain image clarity in varying light conditions.

Sensor Type	1/3" CMOS
Resolution	4MP (2688 × 1520)
Lens Type	Fixed 2.8mm
Field of View	Horizontal 108°, Vertical 57°, Diagonal 132°
Compression Standard	H.265 / H.264 / MJPEG
Weatherproof Rating	IP67
Vandal Resistance	IK10
Power Supply	12V DC ± 25% / PoE (802.3af)
Power Consumption	Max 5.5W
Material	Metal
Operating Temperature	-30°C to 60°C
Dimensions	110mm x 110mm x 103mm
