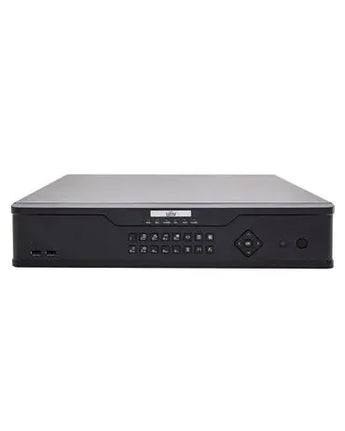

UNIVIEW 32 Channel 16 PoE 12MP Ultra HD Network Video Recorder 4TB HDD NVR304-32EP

Overview

The UNIVIEW NVR304-32EP is a high-performance 32-channel network video recorder designed for extensive surveillance coverage. This unit features 12MP Ultra HD decoding capabilities, ensuring crystal-clear playback and monitoring. It includes 16 built-in PoE ports for simplified plug-and-play camera installation, with support for an additional 16 channels via an external PoE switch. The system supports H.265 and H.265+ video compression to maximise storage efficiency. Pre-installed with a 4TB hard drive, it offers substantial recording capacity out of the box. Intelligent detection features include face detection and cross-line analysis to enhance security management.

Model Number	NVR304-32EP
Video Input Channels	32 Channels
PoE Ports	16 Ports (Built-in)
Max Decoding Resolution	12MP
Video Compression	H.265 / H.265+
Storage Capacity	4TB HDD (Pre-installed)
Network Interface	1 x RJ45 10/100/1000 Mbps
Video Output	1 x HDMI, 1 x VGA
Power Consumption	≤ 45W (without HDD)
Operating Temperature	-10°C to +55°C
