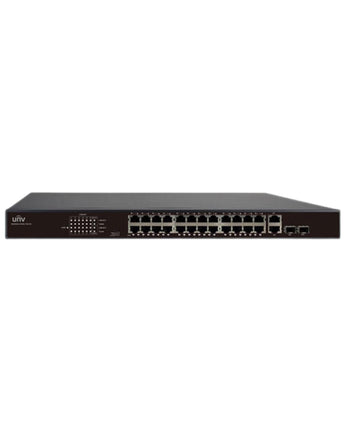

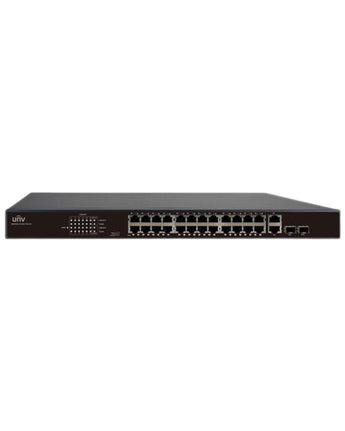

UNIVIEW 24Port (26P) 370W PoE Unmanaged Rackmount Switch NSW2010-24T2GC-POE-IN

Overview

The UNIVIEW NSW2010-24T2GC-POE-IN is a high-performance 26-port unmanaged L2 switch designed for surveillance and enterprise networking. It delivers a total PoE budget of 370W across 24 PoE+ ports, supporting IP cameras, access points, and VoIP phones with extended range up to 250m. Dual Gigabit SFP fibre uplinks provide flexible backbone connectivity, while the robust metal chassis ensures reliable operation in temperatures ranging from 0°C to 45°C. With an 8.8Gbps switching capacity and a 6.55Mpps forwarding rate, this unit handles heavy traffic loads efficiently. The fanless design operates silently, making it ideal for office environments, and includes a built-in power supply for streamlined installation.

Total Ports	26 (24x PoE+, 2x Combo Uplink)
PoE Standard	IEEE 802.3af/at (PoE+)
PoE Power Budget	370W
Max PoE Per Port	30W
Switching Capacity	8.8 Gbps
Forwarding Rate	6.55 Mpps
Uplink Ports	2x 10/100/1000BASE-T RJ45 / 100/1000BASE-X SFP Combo
Power Supply	Internal (Built-in)
Input Voltage	100-240V AC, 50/60Hz
Dimensions	440 x 270 x 44 mm
Weight	3.2 kg
Mounting	19-inch Rackmount (1U)
Operating Temperature	0°C to 45°C
Humidity	10% to 90% (Non-condensing)
Warranty	3 Years
