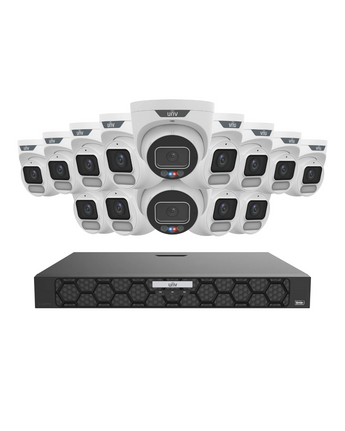

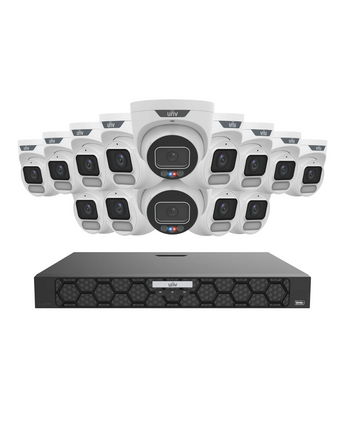

UNIVIEW 16 Channel IQ Series NVR Kit with 2x 6MP TriGuard Alarm and 12x 4MP OwlView Turret Cameras

Overview

This comprehensive security solution integrates 12 units of the 4MP OwlView Turret cameras with 2 units of the high-performance 6MP TriGuard Alarm cameras, all managed by a robust 16-Channel IQ Series Network Video Recorder. The OwlView series delivers 24-hour full-colour surveillance using ColourHunter technology and Wise-ISP image processing, ensuring clear identification even in low-light environments up to 30 meters. The TriGuard units provide active deterrence through intelligent perimeter protection, triggering red and blue warning lights and audible alarms upon detecting intrusion. The system supports intelligent analysis including human and vehicle classification, reducing false alarms caused by environmental factors like leaves or birds. Powered by PoE, the kit offers a streamlined installation with built-in microphones for audio recording and support for up to 256GB SD card backup on individual units. This kit ships without a hard drive (HDD sold separately). For reliable 24/7 recording and smooth playback, add a surveillance-grade HDD such as WD Purple or Seagate SkyHawk, sized to how many days of footage you want to keep.

NVR Channels	16 Channels
Camera Count	14 Cameras (12x 4MP, 2x 6MP)
TriGuard Resolution	6MP (3072 x 2048)
OwlView Resolution	4MP (2688 x 1520)
TriGuard Lens	2.8mm Fixed
OwlView Lens	2.8mm Fixed
Night Vision Mode	Full Colour (OwlView) / IR (TriGuard)
Active Deterrence	Red & Blue Strobe + Audio Alarm
Audio Support	Built-in Microphone (All Cameras)
Protection Rating	IP67 Weatherproof
Power Supply	PoE (802.3af/at)
Intelligent Features	SMD 4.0, Human/Vehicle Classification
Warranty	3 Years Manufacturer Warranty
