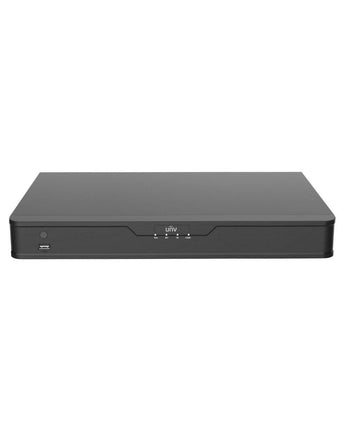

UNIVIEW 16 Channel 8MP (4K) POE Network Video Recorder 16 SATA HDD Up to 10TB NVR302-16S-P16

Overview

This 16-channel Network Video Recorder supports high-resolution recording up to 8 Megapixels (4K Ultra HD) for comprehensive surveillance coverage. Sixteen independent POE network interfaces facilitate plug-and-play setup, while ONVIF conformance ensures compatibility with third-party IP cameras. The unit features 2 SATA HDD bays supporting up to 10TB each for extensive local storage. Advanced video compression standards including Ultra 265 and H.265 optimise bandwidth and storage efficiency. Built-in smart detection capabilities include face detection, cross-line detection, and people counting for enhanced security analytics. The recorder supports up to 300 metres extended distance POE for flexible camera placement.

Channels	16
Max Resolution	8MP (4K)
POE Interfaces	16 Independent
HDD Bays	2 SATA
Max HDD Capacity	10TB per HDD
Video Compression	Ultra 265, H.265, H.264
Incoming Bandwidth	112Mbps
Outgoing Bandwidth	96Mbps
Video Output	1-ch HDMI, 1-ch VGA
Alarm I/O	4 In / 1 Out
Audio I/O	1 In / 1 Out
Network Interface	10/100/1000 Mbps
Power Consumption	≤40W (without HDD)
Dimensions	440 x 375 x 45 mm
Weight	4.5 kg
