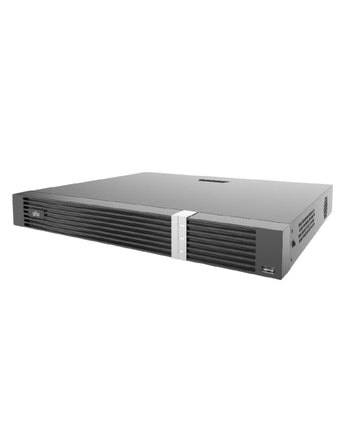

UNIVIEW 16 Channel 8 MP Prime Network Video Recorder 2 SATA HDD UNVNVR302-16E2-P16-IQ

Overview

The Uniview Prime 16-Channel NVR delivers robust surveillance management with support for up to 16 IP cameras at resolutions up to 8MP. Engineered for high-performance recording, this unit features dual SATA interfaces supporting up to 10TB per drive for extensive local storage. The system utilizes H.265+ compression to optimize bandwidth and storage efficiency without compromising image quality. Advanced smart detection capabilities include intrusion, line crossing, and region entrance alerts to reduce false alarms. Dual Gigabit Ethernet ports provide network redundancy and flexible integration into existing infrastructure. This discontinued model is being replaced; contact support for current equivalent specifications.

Video Input	16 Channels IP
Max Resolution	8 MP
Storage Interface	2 x SATA
Max Capacity	10 TB per HDD
Video Compression	H.265 / H.264
Network Interface	2 x 10/100/1000 Mbps
Audio Input	1 Channel RCA
Audio Output	1 Channel RCA
USB Interface	1 x USB 2.0, 1 x USB 3.0
Power Supply	DC 12V / 2A
Dimensions	380mm x 318mm x 53mm
Weight	1.8 kg
