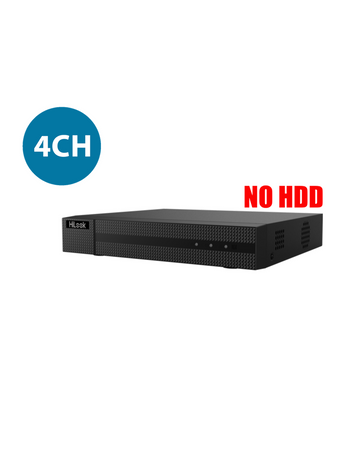

HILOOK 4 Channel 4K NVR 4 PoE Ports NVR-104MH-C/4P

The HiLook NVR-104MH-C/4P is a compact 4-channel network video recorder designed for small to medium surveillance systems. It features built-in Power over Ethernet (PoE) ports to simplify installation by delivering power and data over a single cable to connected cameras. The unit supports 4K HDMI output for ultra-high-definition playback and utilises H.265+ compression to save storage space without reducing video quality. Remote access is available via the HiLookVision mobile app or PC client, allowing users to monitor from anywhere. Smart functions include support for motion detection, line crossing, and intrusion detection when used with compatible cameras. The device supports up to 8TB HDD for 24/7 continuous recording.

Model	NVR-104MH-C/4P
Channel Count	4 IP channels
PoE Ports	4 ports
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	80 Mbps
Video Output	1x HDMI (up to 4K), 1x VGA (up to 1080p)
Audio Output	1 channel, RCA
Video Compression	H.265+, H.265, H.264+, H.264
SATA Interface	1x SATA, up to 8TB capacity
Power Supply	48 VDC, 1.35 A
Operating Temperature	-10°C to +55°C
Dimensions	265 x 225 x 48 mm
Weight	1.1 kg
