HILOOK 4 Channel 4K Network Video Recorder with 4 PoE Ports NVR-104MH-K/4P

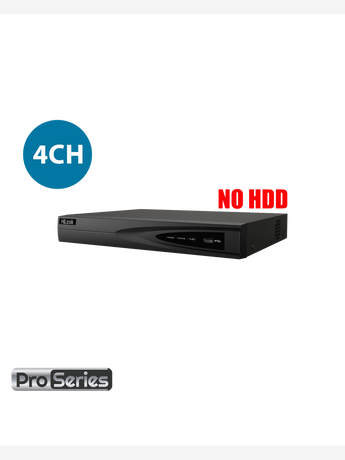

The HiLook NVR-104MH-K/4P is a compact 4-channel network video recorder engineered for small business and home surveillance applications. This unit features four integrated 10/100Mbps PoE ports, allowing for simplified plug-and-play installation of compatible IP cameras using a single Ethernet cable for both power and data. The device supports video input from four IP channels with a maximum resolution of 8MP, ensuring high-definition recording clarity. It utilises H.265+ compression technology to optimise bandwidth usage and storage efficiency while maintaining video quality. The NVR provides a 4K HDMI output and 1080p VGA output for local viewing on monitors. Remote access capabilities are enabled via the HiLookVision app or PC client software, facilitating live monitoring and playback from anywhere. The unit supports one SATA hard drive interface with a capacity up to 8TB for continuous 24/7 recording. Smart video detection features include motion detection, line crossing, and intrusion alerts when used with compatible cameras. It operates on 48V DC power and includes two USB 2.0 ports for peripheral connectivity or backup.

Model	NVR-104MH-K/4P
Video Input	4 IP channels
PoE Ports	4 x 10/100Mbps
Max Resolution	Up to 8MP
Bandwidth	40 Mbps incoming, 40 Mbps outgoing
Video Output	1x HDMI (4K), 1x VGA (1080p)
Compression	H.265+, H.265, H.264+, H.264
Audio	1 channel output (RCA), 1 channel two-way input
HDD Support	1x SATA, up to 8TB
Dimensions	265 x 225 x 48 mm
Weight	1 kg
Power Supply	48V DC, 1.25A
