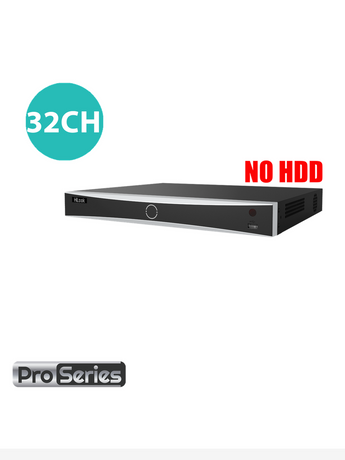

HILOOK 32-Channel 4K PoE Network Video Recorder with 16 PoE Ports NVR-232MH-K/16P

The HiLook NVR-232MH-K/16P is a professional-grade 32-channel network video recorder engineered for large-scale surveillance deployments. Featuring 16 built-in Power over Ethernet (PoE) ports, this unit simplifies installation by delivering power and data over a single cable to compatible cameras. It supports up to 32 IP cameras with a total decoding capacity of 12MP, 8MP, 4MP, or 1080p depending on configuration. The device offers 4K HDMI output for high-resolution playback and supports H.265+ compression to maximise storage efficiency. With 2 SATA bays capable of hosting up to 10TB per drive, it provides robust local storage for continuous 24/7 recording. Remote monitoring is enabled via the HiLookVision mobile app or PC client, while smart functions including motion detection, line crossing, and intrusion detection offer enhanced security intelligence.

Model	NVR-232MH-K/16P
Channel Support	32 IP Camera Inputs
PoE Ports	16 Built-in PoE Interfaces
Video Output	1x HDMI (up to 4K), 1x VGA (up to 1080p)
Video Compression	H.265+, H.265, H.264+, H.264
SATA Interface	2x SATA, up to 10TB capacity per HDD
USB Ports	2x USB 2.0
Power Supply	100 to 240 VAC, 50 to 60 Hz
Power Consumption	≤ 15 W (without HDD and PoE off)
Dimensions	385 × 315 × 52 mm
Weight	≤ 3 kg
Operating Temperature	-10°C to +55°C
Humidity	10% to 90%
