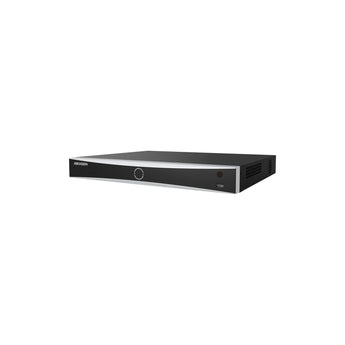

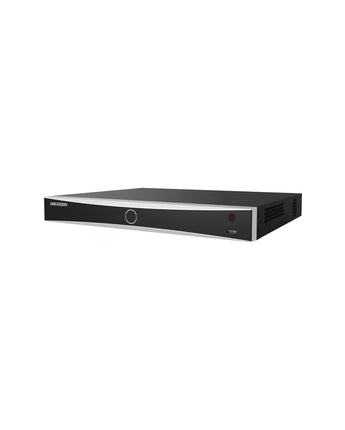

HIKVISION DS-7616NXI-I2/16P/VPRO network video recorder
HIKVISION
HIKVISION VPro Series 16-Channel 32MP 16-Port PoE 2-SATA AcuSense Network Video Recorder DS-7616NXI-I2/16P/VPRO
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
HIKVISION's DS-7616NXI-I2/16P/VPRO records up to 16 IP cameras at resolutions to 32MP (32, 24 or 16MP on up to 4 channels) and belongs to the VPro Series range. It accepts 160 Mbps of incoming camera bandwidth and stores footage on 2 SATA bays (max 20 TB each).
16 built-in PoE ports each feed power and video to a camera over one cable, sharing a 200 W PoE budget. Its HDMI output reaches 4K for local monitors. Deep-learning analytics on the recorder (human/vehicle perimeter filtering on up to 8 channels) let you filter events by people and vehicles. Live view and playback run on HDMI/VGA, iVMS-4200 and the Hik-Connect app. Hard drives are not included.
Key Features
- 16 IP channels, up to 32MP recording (32/24/16MP on up to 4 channels)
- Incoming bandwidth: 160 Mbps
- Storage: 2 SATA bays, max 20 TB each (HDD sold separately)
- 16 PoE ports, 200 W budget (802.3af/at)
- Decoding: Enable AI by NVR: 20-ch@1080p (30 fps)
- HDMI output up to 4K
- Smart functions: human/vehicle perimeter filtering on up to 8 channels
- Network: 1 × Gigabit RJ-45
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-7616NXI-I2/16P/VPRO |
| Product Type | I/VPro Series NVR with AcuSeek |
| IP Video Input | 16 |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Recording Resolution | 32 MP/24 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF; *: The NVR supports up to 4-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP. |
| Decoding Format | H.265, H.265+, H.264, H.264+ |
| Decoding Capability | Enable AI by NVR: 20-ch@1080p (30 fps); 1-ch@32 MP (30 fps); 1-ch@24 MP (30 fps); 2-ch@16MP (30 fps); 3-ch@12MP (30 fps); 5-ch@8 MP (30 fps); 6-ch@6 MP (30 fps); 8-ch@5 MP (30 fps); 10-ch@4 MP (30 fps); 16-ch@2 MP (30 fps); Disable AI by NVR: 32-ch@1080p (30 fps); 2-ch@32 MP (30 fps); 2-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 5-ch@12MP (30 fps); 8-ch@8 MP (30 fps); 10-ch@6 MP (30 fps); 12-ch@5 MP ( |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1920 × 1080/60Hz, 1280 × 720/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| SATA | 2 SATA interfaces |
| HDD Capacity | Up to 20 TB capacity for each disk |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power Budget | ≤ 200W |
| PoE Standard | IEEE 802.3af/at |
| USB | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm I/O | 4/1 |
| Serial Interface | NA |
| Power Supply | ≤ 180 W |
| Power Consumption | ≤ 50W(Without HDD and POE) |
| Operating Temperature | -10℃～＋55℃ |
| Operating Humidity | 10％～90％ |
| Chassis | 1U |
| Dimensions | 384 × 371 × 52 mm（15.12" × 12.48" × 2.03"） |
| Hard Drive | Not included: HDDs are sold separately |
Downloads
Hard drives are not included. HDDs are sold separately: add a WD Purple or Seagate SkyHawk surveillance drive sized for your retention period.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
