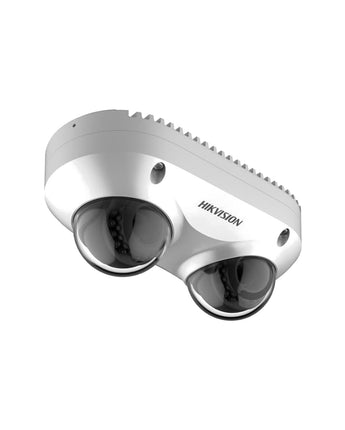

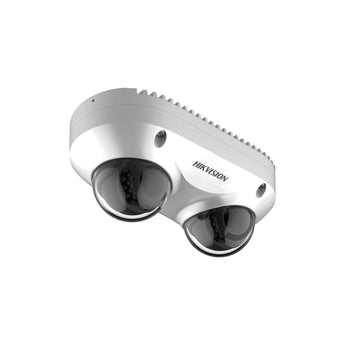

HIKVISION DS-2CD6D42G2-IS Dual-Directional camera

14-Day Returns Policy. No Hassle.

Australian Warranty and Tech Support

Official Online Reseller with real support from brands

HIKVISION

HIKVISION PanoVu AcuSense 4MP 2.8mm 15m IR Built-in Mic IK10 Dual-Directional Network Camera DS-2CD6D42G2-IS

Name: HIKVISION PanoVu AcuSense 4MP 2.8mm 15m IR Built-in Mic IK10 Dual-Directional Network Camera DS-2CD6D42G2-IS
Brand: HIKVISION
SKU: DS-2CD6D42G2-IS
Price: 530.0 AUD
Availability: InStock

$530.00 AUD

Shipping calculated at checkout.

This price is GST-exclusive

Lens: 2.8mm

2.8mm

Product variants

Quantity

Payment

Lens: 2.8mm

2.8mm

Know more about this product

Overview

HIKVISION's DS-2CD6D42G2-IS packs PanoVu and AcuSense into a 4MP dual-directional IP camera. Imaging comes from a 1/1.8" progressive CMOS behind an F1.6 aperture, down to 0.002 lux in colour. It has two 2.8 mm lenses, each with a 110.4° horizontal view. At night it uses IR up to 15 m.

Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. Audio: built-in microphone (no speaker). It is IP67 IK10 rated, powered by PoE (802.3at), with on-board microSD backup.

Key Features

4MP (2688 × 1520) with H.265+
PanoVu, AcuSense
Two 2.8 mm lenses, 110.4° horizontal view each
WDR: 120 dB
Illumination: IR up to 15 m
On-board microphone
Alarm terminals: 2 in, 2 out
microSD slot up to 1024 GB

Key Features & Technical Specifications

Feature	Specification
Brand	HIKVISION
Model	DS-2CD6D42G2-IS
Camera Type	Dual-Directional PanoVu Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.002 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Focal Length & FOV	2.8 mm, horizontal FOV 110.4°, vertical FOV 54.4°, diagonal FOV 136.8°
Aperture	F1.6
DORI (Detect/Observe/Recognise/Identify)	2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
Supplement Light	IR
Supplement Light Range	Up to 15 m
Smart Supplement Light	Yes
Wide Dynamic Range	120 dB
Video Compression	Main stream: H.264+/H.265+/H.265/H.264,; Sub-stream: MJPEG/H.265/H.264,; Third stream: H.265/H.264
Basic Events	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart),alarm input and output,video quality diagnosis
AcuSense Perimeter Protection	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Smart Events	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection,Scene change detection
Built-in Microphone	2 built-in microphones
Alarm I/O	2 inputs, 2 outputs (max. 36 VDC, 30 mA)
Audio I/O	1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Event Linkage	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,audible warning,trigger recording
On-board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 GB
Network Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Power	12 VDC ± 20%, 1.2 A, max. 14 W,Ø5.5 mm coaxial power plug,; PoE: IEEE 802.3at, Class 4, max. 14 W
Ingress / Impact Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Material	Aluminum alloy body
Dimensions	164.3 mm × 84.6 mm × 67.4 mm (6.5" × 3.3" × 2.7")
Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Australian Compliance	RCM (AS/NZS CISPR 32) listed by Hikvision

Downloads

HIKVISION DS-2CD6D42G2-IS datasheet (PDF, Hikvision official)

Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.

Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.

How to use this product - from Virtus experts

These guides are created by our experts with years of real-world security surveillance experience. Get a free project quote tailored to your needs — contact our team at Virtus Electronics today.

Ideal Use Cases

Corridors, driveways and laneways: Two lenses in one housing watch two directions from a single mounting point, so one cable run covers what would otherwise need two cameras.

Driveways and front entries: 4MP detail for visitors, parcels and vehicles.

Side passages and backyards: Perimeter rules alert on people, not pets or moving foliage.

Shopfronts and small businesses: Clear identification at counters, doors and loading areas.

High-risk or reachable mounts: IK10 housing resists tampering and impact.

Sites needing audio evidence: Built-in mic captures sound where recording audio is lawful.

Buyer Tips

Plan both views. Each 2.8 mm lens covers 110.4° horizontally, so place the camera where both directions you need to watch meet, such as a corner or corridor junction.
Mount height. 2.5–3.5 m gives good identification while keeping the camera out of easy reach.
Audio law. Enable the microphone only where audio recording is lawful in your state.
Check NVR compatibility. Smart search and AcuSense filtering need a compatible Hikvision NVR and current firmware.
Budget storage. Higher resolution needs more HDD space; size the NVR drive for your retention period.

FAQs

1. Is there a strobe or siren on the DS-2CD6D42G2-IS?

No. For active deterrence choose a LiveGuard /SL model.

2. How far can it see at night?

Up to 15 m using IR. Real range depends on the scene and reflections.

3. Does it record audio?

Yes, it has a built-in microphone.

4. What power does it need?

PoE 802.3at Class 4, up to 14 W or 12 VDC. A PoE NVR or switch powers it over the network cable.

5. Does it work with a Hikvision NVR?

Yes. Use a current Hikvision NVR for full smart-event support; it also supports ONVIF for third-party recorders.
