HIKVISION Embedded Mobile 7" Touchscreen LCD Monitor DS-MP1301/EMBEDDED

14-Day Returns Policy. No Hassle.

Australian Warranty and Tech Support

Official Online Reseller with real support from brands

HIKVISION

HIKVISION Embedded Mobile 7" Touchscreen LCD Monitor DS-MP1301/EMBEDDED

Name: HIKVISION Embedded Mobile 7" Touchscreen LCD Monitor DS-MP1301/EMBEDDED
Brand: HIKVISION
SKU: DS-MP1301/EMBEDDED
Price: 430.00 AUD
Availability: InStock

$430.00 AUD

This price is GST-exclusive

Product variants

Quantity

Payment

Know more about this product

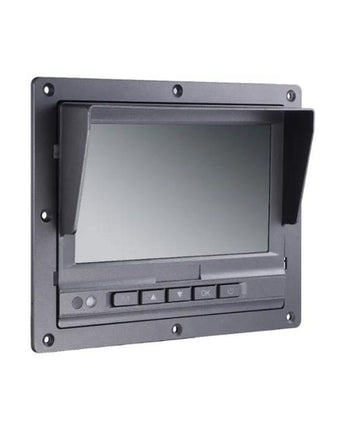

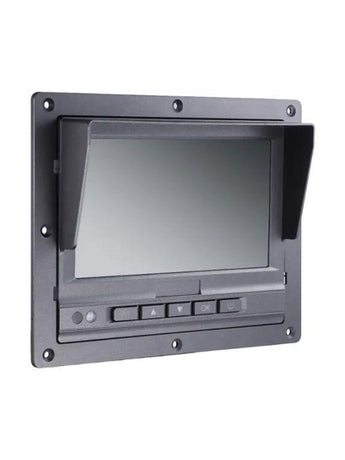

The DS-MP1301/EMBEDDED is a 7-inch TFT-LCD vehicle monitor designed for onboard video surveillance systems. With an 800 × 480 RGB display, adjustable LED backlight and support for PAL/NTSC video, it provides drivers and operators with a dedicated screen for viewing connected vehicle cameras.

The monitor supports three video inputs, including a connection for a mobile DVR, a dedicated rear-view camera input and an additional reserved camera input. When correctly connected to the vehicle reversing signal, it can automatically display the rear-view camera while the vehicle is backing up.

Designed specifically for mobile environments, the DS-MP1301/EMBEDDED is operated using physical keys rather than a touchscreen and supports two alarm inputs. It operates from 12V DC and is designed for temperatures from -20°C to +70°C.

Specification	Details
Model Code	DS-MP1301/EMBEDDED
Product Type	Vehicle LCD Monitor
Screen Size	7" TFT-LCD
Resolution	800 × 480 RGB
Backlight	LED
Brightness	Adjustable
Viewing Angle	130°
Video System	PAL / NTSC
Operation	Physical Keys
Trigger Mode	Key / Alarm Line
Video Inputs	3 Channels
Rear-View Camera Input	1 Channel
Additional Camera Input	1 Channel Reserved
Alarm Inputs	2 Channels
Nominal Voltage	12V DC
Operating Temperature	-20°C to +70°C
Working Humidity	10% to 95%

How to use this product - from Virtus experts

These guides are created by our experts with years of real-world security surveillance experience. Get a free project quote tailored to your needs — contact our team at Virtus Electronics today.

Buses and Coaches: provides drivers with a dedicated display for viewing rear and onboard cameras as part of a vehicle surveillance system.

School Buses: automatic rear-view camera display can improve visibility behind the vehicle when reversing.

Taxis and Commercial Vehicles: the compact 7-inch display suits vehicle installations where operators need convenient access to connected camera feeds.

Fleet and Transport Vehicles: three video inputs support integration with a mobile DVR, reversing camera and an additional camera for broader vehicle monitoring.

The DS-MP1301/EMBEDDED is not a touchscreen monitor. Hikvision specifies physical-key operation.
The 7-inch 800 × 480 display is designed primarily for onboard camera monitoring rather than high-resolution multimedia use.
It supports three video inputs, including connections for a mobile DVR, rear-view camera and one additional camera.
For reversing applications, correctly connect the rear-view camera and alarm/trigger line so the monitor can automatically display the rear camera when required.
The monitor uses 12V DC power, so confirm compatibility with the vehicle's electrical installation before installation.
Hikvision specifies an operating range of -20°C to +70°C, making the monitor suitable for the changing temperatures typically encountered inside vehicles.

Is the Hikvision DS-MP1301/EMBEDDED a touchscreen monitor? No. Hikvision specifies the operation mode as Key, meaning the monitor is controlled using physical buttons rather than a touchscreen.

How many video inputs does the DS-MP1301/EMBEDDED support? The monitor supports three video inputs: one for a mobile DVR, one dedicated rear-view camera input and one additional reserved camera input.

Can it automatically display the reversing camera? Yes. The DS-MP1301/EMBEDDED can provide a real-time view from the rear-view camera when the vehicle is reversing, provided the camera and trigger connection are correctly installed.

What is the screen resolution? The monitor uses a 7-inch TFT-LCD with 800 × 480 RGB resolution, LED backlighting and adjustable brightness.

Does the DS-MP1301/EMBEDDED support alarm inputs? Yes. Hikvision specifies two alarm input channels, which can be used as part of the monitor's vehicle-triggered display configuration.
