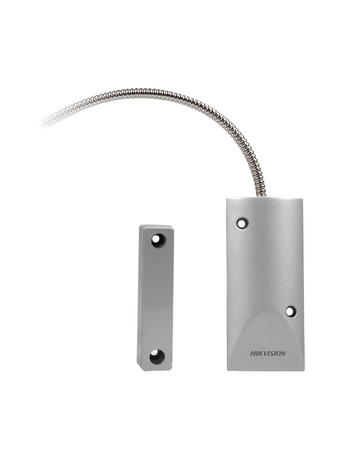

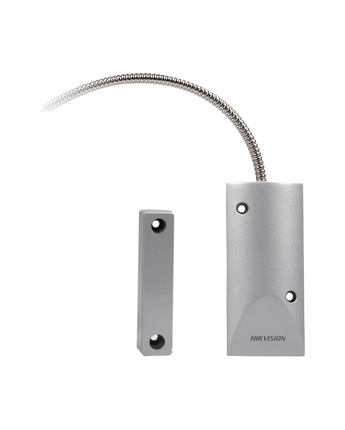

HIKVISION DS-PD1-MC-RS Wired Magnetic Contact For Rolling Doors Metal Shell NC
HIKVISION
HIKVISION DS-PD1-MC-RS Wired Magnetic Contact For Rolling Doors Metal Shell NC
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
The HIKVISION DS-PD1-MC-RS is a robust wired magnetic contact designed specifically for the security of rolling doors and shutters. Constructed with a durable metal shell, this sensor offers superior resistance against physical impact and environmental wear compared to standard plastic alternatives. It utilises a Normally Closed (NC) connection type to ensure a reliable alarm signal when the door is opened. The unit features a wide active gap of up to 65mm, allowing it to function effectively despite the vibration and movement typical of industrial or commercial roller doors. With a compact form factor, it installs discreetly while providing stable performance across varying temperatures and humidity levels. This sensor is essential for integrating secure perimeter protection into professional alarm systems.
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | DS-PD1-MC-RS |
| Connection Type | Normally Closed (NC) |
| Active Gap | 65 mm |
| Shell Material | Metal |
| Typical Voltage | ≤100 VDC (Capacity) |
| Typical Current | ≤500 mA (Capacity) |
| Operation Temperature | -10 °C to 55 °C |
| Storage Temperature | -20 °C to 60 °C |
| Dimensions | 108 x 40 x 8 mm |
| Weight | 0.15 kg |
