HIKVISION DS-2SE7C432MWG-EB/26 (F0) 6MP + 4MP TandemVu PTZ Camera, 32X Optical Zoom, IR 200m, IP66

14-Day Returns Policy. No Hassle.

Australian Warranty and Tech Support

Official Online Reseller with real support from brands

HIKVISION

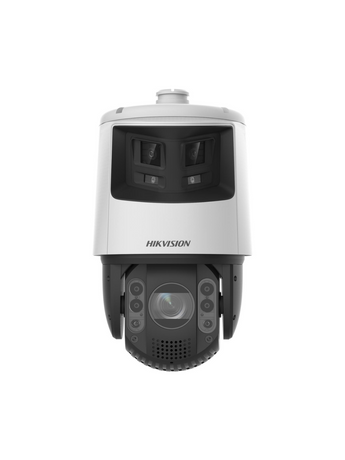

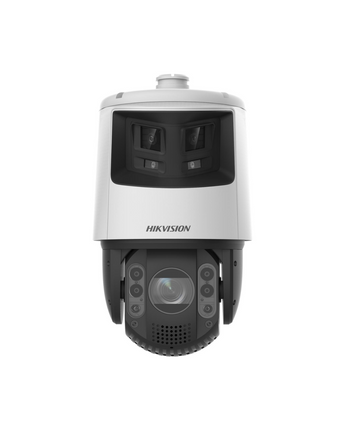

HIKVISION TandemVu ColorVu 6MP + 4MP 32x Optical Zoom 200m IR AcuSense PTZ Network Camera DS-2SE7C432MWG-EB/26(F0)

Name: HIKVISION TandemVu ColorVu 6MP + 4MP 32x Optical Zoom 200m IR AcuSense PTZ Network Camera DS-2SE7C432MWG-EB/26(F0)
Brand: HIKVISION
SKU: DS-2SE7C432MWG-EB/26 (F0)
Price: 2427.0 AUD
Availability: InStock

$2,427.00 AUD

Shipping calculated at checkout.

This price is GST-exclusive

Product variants

Quantity

Payment

Know more about this product

Overview

HIKVISION's DS-2SE7C432MWG-EB/26(F0) is a TandemVu PTZ that combines two cameras in one housing. A fixed panoramic channel (3632 × 1632, 2.8 mm, about 180° horizontal) keeps the whole scene in view in colour using ColorVu and up to 30 m of white light, while the 4MP PTZ channel (2560 × 1440) zooms 32x optically from 5.9 to 188.8 mm to pick out faces and number plates.

Because the panorama never moves, nothing is missed while the PTZ is zoomed in. Panorama linkage, tracking takeover and auto-tracking let the PTZ follow people and vehicles that trigger AcuSense line crossing, intrusion and region entry/exit rules. The PTZ channel has IR up to 200 m, 120 dB WDR and image stabilisation. It is IP66 rated, runs on 24 VAC or Hi-PoE (max. 60 W) and records to a microSD card up to 256 GB.

Key Features

Panoramic channel: 3632 × 1632, 2.8 mm, approx. 180° horizontal, ColorVu with white light up to 30 m
PTZ channel: 4MP (2560 × 1440), 32x optical zoom (5.9–188.8 mm)
IR up to 200 m on the PTZ channel
Panorama linkage, tracking takeover and auto-tracking
AcuSense line crossing, intrusion, region entrance/exit; face capture and regional people counting
120 dB WDR (PTZ channel), image stabilisation, defog
Alarm 2 in / 1 out, audio 1 in / 1 out, microSD up to 256 GB
IP66, 24 VAC or Hi-PoE (max. 60 W), -30 °C to 65 °C

Key Features & Technical Specifications

Feature	Specification
Brand	HIKVISION
Model	DS-2SE7C432MWG-EB/26(F0)
Camera Type	TandemVu 6+4 MP 32X ColorVu & IR Acusense Panoramic Network Speed Dome
Image Sensor	[Panoramic channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
Max. Resolution	[Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440
Min. Illumination	[PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Aperture	[Panoramic channel] F1.0, [PTZ channel] Max. F1.5
Supplement Light	IR
Supplement Light Range	IR distance: up to 200 m
Wide Dynamic Range	[Panoramic channel] Digital WDR, [PTZ channel] 120 dB
Video Compression	Main stream: H.265+/H.265/H.264+/H.264,; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264/MJPEG
Basic Events	Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
Smart Events	Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
Built-in Microphone	No
Alarm I/O	2 input(s), 1 output(s)
Audio I/O	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, ; 1 output (line out), line level, output impedance: 600 Ω
Event Linkage	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan),audible warning,white light flashing
Network Interface	1 RJ45 10/100M self-adaptive Ethernet port
Power	24 VAC, Max. 60 W, Hi-PoE
Ingress / Impact Protection	IP66 (IEC 60529-2013)
Material	ADC12,Plastic,PC+10%GF
Focal Length	[Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
Field of View	[Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5°; [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°
Zoom	32 × optical,16 × digital
White Light Range	Panoramic channel: 30 m
Pan Range	360°
Tilt Range	-15° to 90°
Presets	300
Smart Tracking	Manual tracking,auto-tracking
Smart Linkage	panorama linkage, tracking takeover, track in turn
Face Capture	Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
On-board Storage	Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Operating Conditions	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Image Stabilisation	yes
Dimensions	Ø222.3 mm × 387.2 mm (Ø8.75" × 15.2")

Downloads

HIKVISION DS-2SE7C432MWG-EB/26(F0) datasheet (PDF, Hikvision official)

Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.

Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.

How to use this product - from Virtus experts

These guides are created by our experts with years of real-world security surveillance experience. Get a free project quote tailored to your needs — contact our team at Virtus Electronics today.

Ideal Use Cases

Large car parks and logistics yards: The 180° panorama watches the whole lot while the PTZ zooms in on the vehicle or person that triggered an event.

Industrial and commercial perimeters: Auto-tracking follows intruders along fence lines, with 200 m IR for unlit areas.

Shopping centres, campuses and public spaces: One mounting point replaces a fixed overview camera plus a separate PTZ.

Construction and rural sites: Wide colour overview at night plus long-range zoom on site entrances and plant.

Control rooms and guarded sites: Operators keep situational awareness on the panorama while steering the PTZ.

Buyer Tips

Budget Hi-PoE or 24 VAC. Use a Hikvision Hi-PoE injector or switch port rated for 60 W, or a 24 VAC supply.
Mount high and central. A pole or building corner gives the panorama a clear 180° view and lets the PTZ reach the far edges.
Record both channels. Each channel uses its own NVR channel, so allow two channels and the bandwidth for both streams.
Mind the white light. The panoramic white light can affect neighbours; schedule it or use event-triggered mode near homes.
Check NVR firmware. Use a current Hikvision NVR for TandemVu linkage, smart events and Hik-Connect viewing.

FAQs

1. What does TandemVu mean on the DS-2SE7C432MWG-EB/26(F0)?

It has two cameras: a fixed 180° panoramic channel and a 4MP PTZ with 32x optical zoom, so the overview keeps recording while the PTZ zooms in.

2. What is the night-time range?

The PTZ channel has IR up to 200 m. The panoramic channel stays in colour using ColorVu and white light up to 30 m.

3. Does it follow people and vehicles automatically?

Yes. Auto-tracking and panorama linkage let the PTZ follow targets that trigger detection rules on the panorama.

4. What power does it need?

24 VAC or Hi-PoE, with a maximum draw of 60 W. A standard PoE switch port is not enough.

5. Does it record audio?

There is no built-in microphone. It has a line-in and line-out for an external microphone and speaker.
