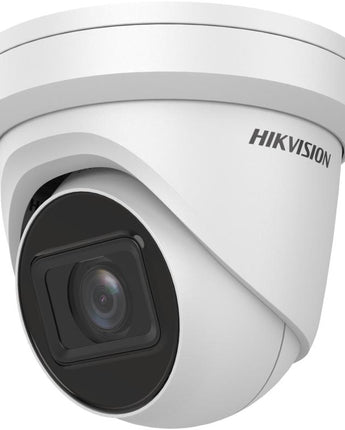

HIKVISION DS-2CD2H86G2T-IZS 4K Acusense Motorized Varifocal Turret Network Camera - view 1
HIKVISION DS-2CD2H86G2T-IZS 4K Acusense Motorized Varifocal Turret Network Camera - view 2
HIKVISION DS-2CD2H86G2T-IZS 4K Acusense Motorized Varifocal Turret Network Camera - view 3
HIKVISION
HIKVISION AcuSense 8MP 4K 2.8-12mm Motorised Varifocal 40m IR IK10 Turret Network Camera DS-2CD2H86G2T-IZS
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview

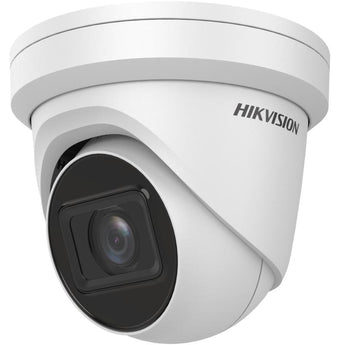

The HIKVISION DS-2CD2H86G2T-IZS is an 8MP (4K, 3840 × 2160) AcuSense turret network camera with a 2.8–12 mm motorised varifocal lens. The field of view adjusts from 108° to 46° horizontal, so you can frame a driveway or zoom down a long boundary remotely. It uses a 1/1.8" progressive scan CMOS sensor with F1.4 lens, smart IR up to 40 m and 120 dB WDR.
AcuSense classifies people and vehicles on motion and perimeter rules. The -S interfaces provide 1 alarm input/output (max. 24 VAC/VDC, 500 mA) and audio line in/out. It has no built-in microphone. The metal housing is rated IP67 and IK10, and the camera runs on 802.3af PoE (max. 12.5 W) or 12 VDC.
Key Features
- 2.8–12 mm motorised varifocal lens with remote zoom and focus
- 8MP 4K, F1.4, smart IR up to 40 m
- AcuSense human and vehicle classification
- 120 dB WDR
- 1 alarm in/out and audio line in/out terminals
- IP67 and IK10 metal housing
- 802.3af PoE Class 3 (max. 12.5 W) or 12 VDC
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD2H86G2T-IZS |
| Camera Type | 4K Acusense Motorized Varifocal Turret Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Lens | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52° |
| Aperture | F1.4 |
| DORI (Detect/Observe/Recognise/Identify) | 2.8 to 12 mm: ; Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m; Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m |
| Supplement Light | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Basic Events | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| AcuSense Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) |
| Smart Events | Scene change detection |
| Alarm I/O | 1 input, 1 output (max. 24 VAC/24 VDC, 500 mA) |
| Audio I/O | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type: non-equilibrium |
| Event Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 0.92 A, max. 11.04 W,Ø5.5 mm coaxial power plug,reverse polarity protection,; PoE: IEEE 802.3af, Class 3, max. 12.5 W |
| Ingress / Impact Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
| Material | Metal |
| Dimensions | Ø138.3 mm × 126 mm (Ø5.5" × 5.0") |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Built-in Microphone | No |
| Australian Compliance | RCM (AS/NZS CISPR 32) listed by Hikvision |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits — add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
