HIKVISION AcuSense 8MP 4K Built-in Mic 2.8mm IK08 Mini Dome Network Camera DS-2CD2586G2-IS
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview

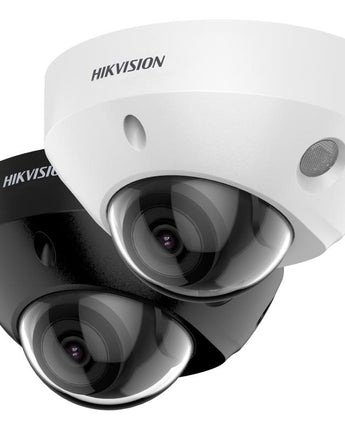

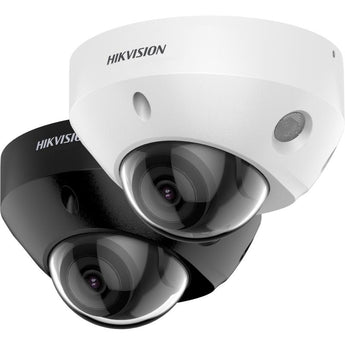

The HIKVISION DS-2CD2586G2-IS is an 8MP (4K, 3840 × 2160) AcuSense fixed mini dome network camera. It combines a 1/1.8" progressive scan CMOS sensor with an F1.6 2.8 mm lens, smart IR up to 30 m and 120 dB WDR in a low-profile Ø113.6 × 72.6 mm housing.
AcuSense classifies people and vehicles on motion and perimeter rules. The camera has a built-in microphone, and the -S interfaces add 1 alarm input and output plus audio line in and line out on terminal blocks. It is rated IP67 and IK08, with an aluminium base and plastic cover, and runs on 802.3af PoE (max. 8 W) or 12 VDC.
Key Features
- AcuSense human and vehicle classification
- 8MP 4K (3840 × 2160) with H.265+
- Smart IR up to 30 m, 120 dB WDR, F1.6
- Built-in microphone
- 1 alarm in/out and audio line in/out (-S)
- IP67 and IK08 compact mini dome
- 802.3af PoE Class 3 (max. 8 W) or 12 VDC
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD2586G2-IS |
| Camera Type | 8 MP AcuSense Fixed Mini Dome Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Lens | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°; 4 mm, horizontal FOV 88.0°, vertical FOV 49.9°, diagonal FOV 100.4° |
| Aperture | F1.6 |
| DORI (Detect/Observe/Recognise/Identify) | 2.8 mm:; D: 89 m; O: 35 m; R: 18 m; I: 9 m; 4 mm:; D: 99 m; O: 39 m; R: 20 m; I: 10 m |
| Supplement Light | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Basic Events | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| AcuSense Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) |
| Smart Events | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Scene change detection |
| Built-in Microphone | Yes |
| Alarm I/O | 1 input, 1 output (max. 12 VDC, 20 mA) |
| Audio I/O | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Event Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| On-board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W |
| Ingress / Impact Protection | IP67: IEC 60529-2013,IK08: IEC 62262:2002 |
| Material | Base: aluminum, cover: plastic |
| Dimensions | Ø113.6 mm × 72.6 mm (Ø4.5" × 2.9") |
| Weight | Approx. 400 g (0.9 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Australian Compliance | RCM (AS/NZS CISPR 32) listed by Hikvision |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits — add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
