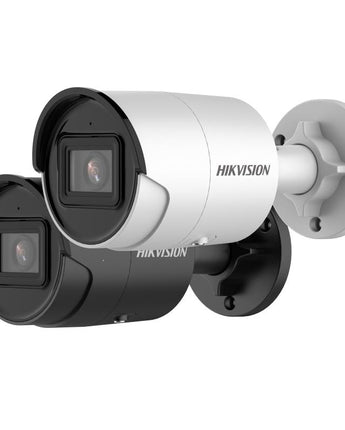

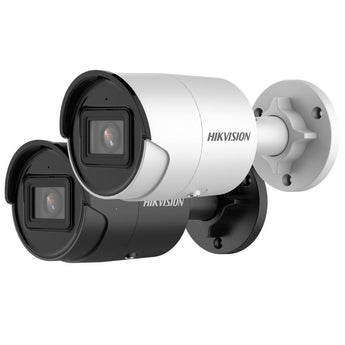

HIKVISION AcuSense 6MP Built-in Mic 2.8mm Mini Bullet Network Camera DS-2CD2066G2-IU
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
The HIKVISION DS-2CD2066G2-IU is a 6MP AcuSense fixed mini bullet network camera from the Hikvision Pro Series (EasyIP). It records 3200 × 1800 from a 1/2.4" progressive scan CMOS sensor through an F1.6 2.8 mm lens, with 120 dB WDR and smart IR.
AcuSense deep learning classifies people and vehicles on motion detection and perimeter rules, cutting false alerts from trees, insects and weather. The -IU suffix means a built-in microphone; there is no speaker, strobe or siren. The compact metal bullet body (Ø70 × 161.7 mm) is IP67 rated and runs on 802.3af PoE (max. 7.2 W) or 12 VDC.
Key Features
- AcuSense human and vehicle classification
- 6MP (3200 × 1800) with H.265+
- Smart IR (current OEM revision rated up to 40 m)
- 120 dB WDR, BLC, HLC, 3D DNR
- Built-in microphone (no speaker)
- microSD up to 512 GB with ANR
- IP67, 802.3af PoE Class 3 or 12 VDC
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD2066G2-IU |
| Camera Type | 6 MP AcuSense Fixed Bullet Network Camera |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Lens | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°; 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59° |
| Aperture | F1.6 |
| DORI (Detect/Observe/Recognise/Identify) | 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m; 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m |
| Supplement Light | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264 (*Third stream is supported under certain settings.) |
| Basic Events | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Smart Events | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection |
| Built-in Microphone | Yes |
| Event Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| On-board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, ; PoE: IEEE 802.3af, Class 3, max. 7.2 W |
| Ingress / Impact Protection | IP67: IEC 60529-2013 |
| Dimensions | Ø70 mm × 161.7 mm (Ø2.8" × 6.4") |
| Weight | Approx. 490 g (1.1 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Australian Compliance | RCM (AS/NZS CISPR 32) listed by Hikvision |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits — add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
