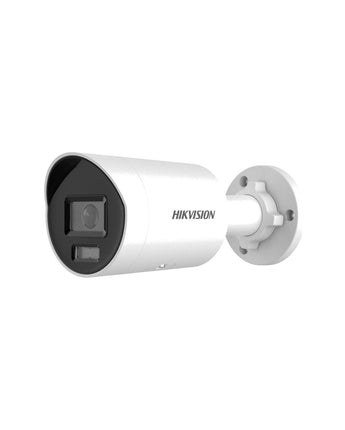

HIKVISION DS-2CD2086G2H-IU Bullet camera
HIKVISION
HIKVISION DarkFighter AcuSense 8MP 4K 2.8mm 40m IR Built-in Mic Bullet Network Camera DS-2CD2086G2H-IU
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
HIKVISION's DS-2CD2086G2H-IU packs DarkFighter and AcuSense into an 8MP (4K) bullet IP camera. Imaging comes from a 1/1.8" progressive CMOS behind an F1.0 aperture, down to 0.0008 lux in colour. It ships with a 2.8 mm lens, 105.1° horizontal view. At night it uses IR up to 40 m.
Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. Audio: built-in microphone (no speaker). It is IP67 rated, powered by PoE (802.3af), with on-board microSD backup.
Key Features
- 8MP 4K (3840 × 2160) with H.265+
- DarkFighter, AcuSense
- 2.8 mm lens, 105.1° horizontal view
- WDR: 120 dB
- Illumination: IR up to 40 m
- On-board microphone
- microSD slot up to 512 GB
- IP67, 802.3af
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD2086G2H-IU |
| Camera Type | 8 MP Powered by Darkfighter Fixed Mini Bullet Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR |
| Lens | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2° |
| Aperture | F1.0 |
| DORI (Detect/Observe/Recognise/Identify) | 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m |
| Supplement Light | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+,; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264,; *Third stream is supported under certain settings. |
| Basic Events | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| AcuSense Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) |
| Smart Events | Scene change detection |
| Built-in Microphone | Yes |
| Event Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 0.58 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection,; PoE: IEEE 802.3af, Class 3, max. 8.5 W |
| Ingress / Impact Protection | IP67: IEC 60529-2013 |
| Material | Front cover: metal, body: metal, bracket: Metal |
| Face Capture | Yes |
| Dimensions | Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1") |
| Weight | Approx. 525 g (1.2 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Australian Compliance | RCM (AS/NZS CISPR 32) listed by Hikvision |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
