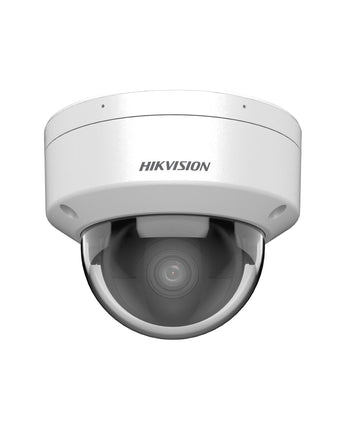

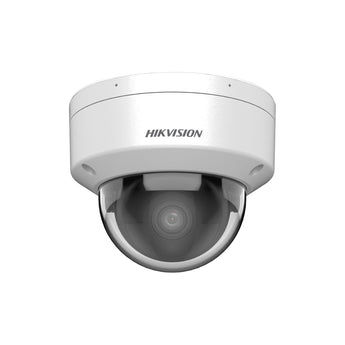

HIKVISION DarkFighter AcuSense 8MP 4K 2.8mm 30m IR Built-in Mic IK10 Dome Network Camera DS-2CD2186G2H-ISU

Name: HIKVISION DarkFighter AcuSense 8MP 4K 2.8mm 30m IR Built-in Mic IK10 Dome Network Camera DS-2CD2186G2H-ISU
Brand: HIKVISION
SKU: DS-2CD2186G2H-ISU
Price: 299.0 AUD
Availability: InStock

$299.00 AUD

Shipping calculated at checkout.

This price is GST-exclusive

Lens: 2.8mm

2.8mm

Product variants

Quantity

Payment

Lens: 2.8mm

2.8mm

Know more about this product

Overview

HIKVISION's DS-2CD2186G2H-ISU packs DarkFighter and AcuSense into an 8MP (4K) dome IP camera. Imaging comes from a 1/1.8" progressive CMOS behind an F1.0 aperture, down to 0.0008 lux in colour. It ships with a 2.8 mm lens, 105.1° horizontal view. At night it uses IR up to 30 m.

Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. Audio: built-in microphone (no speaker). It is IP67 IK10 rated, powered by PoE (802.3af), with on-board microSD backup.

Key Features

8MP 4K (3840 × 2160) with H.265+
DarkFighter, AcuSense
2.8 mm lens, 105.1° horizontal view
WDR: 130 dB
Illumination: IR up to 30 m
On-board microphone
Alarm terminals: 1 in, 1 out
microSD slot up to 512 GB

Key Features & Technical Specifications

Feature	Specification
Brand	HIKVISION
Model	DS-2CD2186G2H-ISU
Camera Type	8 MP Powered by Darkfighter Fixed Dome Network Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Lens	Fixed focal lens, 2.8 mm
Focal Length & FOV	2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
Aperture	F1.0
DORI (Detect/Observe/Recognise/Identify)	2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
Supplement Light	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
Wide Dynamic Range	130 dB
Video Compression	Main stream: H.265/H.264/H.264+/H.265+,; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264,; *Third stream is supported under certain settings.
Basic Events	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
AcuSense Perimeter Protection	Line crossing, intrusion, region entrance, region exiting; Support alarm triggered by specified target types (human and vehicle)
Smart Events	Scene change detection
Built-in Microphone	Yes
Alarm I/O	1 input, 1 output (max. 12 VDC, 30 mA)
Audio I/O	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Event Linkage	Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
On-board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Power	12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,; PoE: IEEE 802.3af, Class 3, max. 9.5 W
Ingress / Impact Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Material	Base: aluminum alloy, cover: aluminum alloy
Face Capture	Yes
Dimensions	Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Weight	Approx. 525 g (1.2 lb.)
Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Downloads

HIKVISION DS-2CD2186G2H-ISU datasheet (PDF, Hikvision official)

Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.

Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.

How to use this product - from Virtus experts

These guides are created by our experts with years of real-world security surveillance experience. Get a free project quote tailored to your needs — contact our team at Virtus Electronics today.

Ideal Use Cases

Driveways and front entries: 8MP detail for visitors, parcels and vehicles.

Side passages and backyards: Perimeter rules alert on people, not pets or moving foliage.

Shopfronts and small businesses: Clear identification at counters, doors and loading areas.

High-risk or reachable mounts: IK10 housing resists tampering and impact.

Sites needing audio evidence: Built-in mic captures sound where recording audio is lawful.

Buyer Tips

Pick the right lens. The 2.8 mm lens, 105.1° horizontal view suits wide areas; choose a narrower lens for faces or plates at distance.
Mount height. 2.5–3.5 m gives good identification while keeping the camera out of easy reach.
Audio law. Enable the microphone only where audio recording is lawful in your state.
Check NVR compatibility. Smart search and AcuSense filtering need a compatible Hikvision NVR and current firmware.
Budget storage. Higher resolution needs more HDD space; size the NVR drive for your retention period.

FAQs

1. Is there a strobe or siren on the DS-2CD2186G2H-ISU?

No. For active deterrence choose a LiveGuard /SL model.

2. How far can it see at night?

Up to 30 m using IR. Real range depends on the scene and reflections.

3. Does it record audio?

Yes, it has a built-in microphone.

4. What power does it need?

PoE 802.3af Class 3, up to 9.5 W or 12 VDC. A PoE NVR or switch powers it over the network cable.

5. Does it work with a Hikvision NVR?

Yes. Use a current Hikvision NVR for full smart-event support; it also supports ONVIF for third-party recorders.
