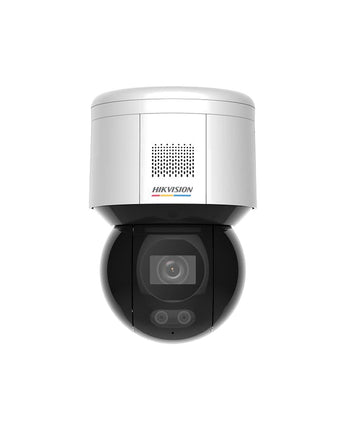

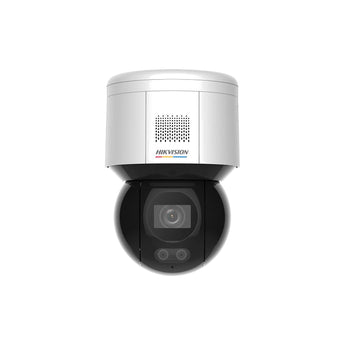

HIKVISION DS-2DE3A400BW-DE(T5) PT Dome camera

14-Day Returns Policy. No Hassle.

Australian Warranty and Tech Support

Official Online Reseller with real support from brands

HIKVISION

HIKVISION ColorVu AcuSense 4MP 30m White Light PT Dome Network Camera DS-2DE3A400BW-DE(T5)

Name: HIKVISION ColorVu AcuSense 4MP 30m White Light PT Dome Network Camera DS-2DE3A400BW-DE(T5)
Brand: HIKVISION
SKU: DS-2DE3A400BW-DE(T5)
Price: 402.0 AUD
Availability: InStock

$402.00 AUD

Shipping calculated at checkout.

This price is GST-exclusive

Product variants

Quantity

Payment

Know more about this product

Overview

HIKVISION's DS-2DE3A400BW-DE(T5) packs ColorVu and AcuSense into a 4MP PT dome IP camera. Imaging comes from a 1/1.8" progressive scan CMOS behind an F1.0 aperture, down to 0.0005 lux in colour. At night it uses white light up to 30 m.

Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. ColorVu keeps the image in colour after dark, which makes clothing and vehicle colours usable as evidence. Audio: built-in speaker, plus a line-in terminal for an external microphone. It is IP66 rated, powered by PoE (802.3at).

Key Features

4MP (2560 × 1440) with H.265+
ColorVu, AcuSense
WDR: 120 dB
Illumination: white light up to 30 m
Alarm terminals: 1 in, 1 out
IP66, 802.3at

Key Features & Technical Specifications

Feature	Specification
Brand	HIKVISION
Model	DS-2DE3A400BW-DE(T5)
Camera Type	3-inch 4 MP ColorVu Mini PT Dome Network Camera
Image Sensor	1/1.8" progressive scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
Aperture	F1.0
Supplement Light	White Light
Supplement Light Range	White Light Distance: up to 30 m
Wide Dynamic Range	120 dB
Video Compression	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264/MJPEG
Basic Events	Video tampering alarm, motion detection, alarm input, alarm output, exception
AcuSense Perimeter Protection	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Smart Events	Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
Built-in Microphone	No
Built-in Speaker	1 built-in speaker
Alarm I/O	1 input, 1 output
Audio I/O	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Event Linkage	Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing
Network Interface	1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
Power	12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A; Max. 14 W (including max. 4 W for white light)
Ingress / Impact Protection	IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
Focal Length	4 mm
Field of View	Horizontal field of view: 88.7°; Vertical field of view: 46.5°; Diagonal field of view: 105.0°
Zoom	16x digital
Pan Range	350°
Tilt Range	0° to 90°
Presets	300
Face Capture	Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
On-board Storage	Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
Operating Conditions	Humidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
Dimensions	179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71")

Downloads

HIKVISION DS-2DE3A400BW-DE(T5) datasheet (PDF, Hikvision official)

Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.

Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.

How to use this product - from Virtus experts

These guides are created by our experts with years of real-world security surveillance experience. Get a free project quote tailored to your needs — contact our team at Virtus Electronics today.

Ideal Use Cases

Shopfronts, yards and entries: Pan and tilt let you re-aim the view remotely from the app, so one camera can be pointed where it is needed after installation.

Driveways and front entries: 4MP detail in colour at night for visitors, parcels and vehicles.

Side passages and backyards: Perimeter rules alert on people, not pets or moving foliage.

Shopfronts and small businesses: Clear identification at counters, doors and loading areas.

Strata and multi-dwelling sites: Hik-Connect sharing lets residents or managers view footage without extra software.

Warehouses and loading docks: Event-filtered alerts on people and vehicles around roller doors after hours.

Buyer Tips

Set presets after mounting. The fixed 4 mm lens (88.7° horizontal) is re-aimed by remote pan and tilt, so save preset positions for the areas you check most.
Mount height. 2.5–3.5 m gives good identification while keeping the camera out of easy reach.
Plan for lighting. Add a ColorVu or hybrid-light camera where colour at night matters.
Check NVR compatibility. Smart search and AcuSense filtering need a compatible Hikvision NVR and current firmware.
Budget storage. Higher resolution needs more HDD space; size the NVR drive for your retention period.

FAQs

1. Is there a strobe or siren on the DS-2DE3A400BW-DE(T5)?

No. For active deterrence choose a LiveGuard /SL model.

2. How far can it see at night?

Up to 30 m using white light. Real range depends on the scene and reflections.

3. Will the white light bother neighbours?

It can. Use smart/hybrid mode, reduce brightness, or angle the camera away from neighbouring windows.

4. Does it record audio?

It has audio input terminals for an external mic.

5. What power does it need?

PoE 802.3at, up to 4 W or 12 VDC. A PoE NVR or switch powers it over the network cable.
