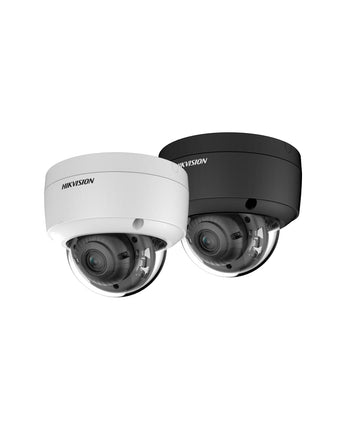

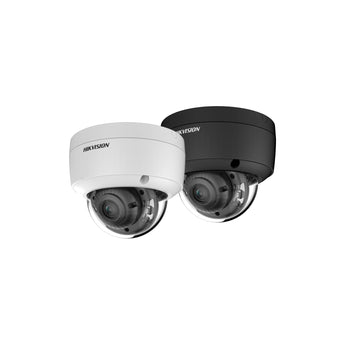

HIKVISION DS-2CD2147G2-L Dome camera
HIKVISION DS-2CD2147G2-L Dome camera
HIKVISION DS-2CD2147G2-L Dome camera
HIKVISION DS-2CD2147G2-L Dome camera
HIKVISION
HIKVISION ColorVu 4MP 2.8mm 30m White Light IK10 Dome Network Camera DS-2CD2147G2-L
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
HIKVISION's DS-2CD2147G2-L packs ColorVu into a 4MP dome IP camera. Imaging comes from a 1/1.8" progressive CMOS behind an F1.0 aperture. It ships with a 2.8 mm lens, 112° horizontal view. At night it uses white light up to 30 m.
ColorVu keeps the image in colour after dark, which makes clothing and vehicle colours usable as evidence. It is IP67 IK10 rated, powered by PoE (802.3af), with on-board microSD backup.
Key Features
- 4MP (2688 × 1520) with H.265+
- ColorVu
- 2.8 mm lens, 112° horizontal view
- WDR: 130 dB
- Illumination: white light up to 30 m
- microSD slot up to 512 GB
- IP67 IK10, 802.3af
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD2147G2-L |
| Camera Type | 4 MP ColorVu Fixed Dome Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Lens | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° |
| Aperture | F1.0 |
| DORI (Detect/Observe/Recognise/Identify) | 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m |
| Supplement Light | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 130 dB |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Basic Events | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Events | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Scene change detection |
| Built-in Microphone | No |
| Event Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send emailtrigger alarm output (-SU), audible warning (-SU) |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W |
| Ingress / Impact Protection | IP67 (IEC 60529-2013); IK10 (IEC 62262: 2002) |
| Face Capture | Yes |
| Dimensions | Ø121.4 mm × 100.1 mm (Ø4.8" × 3.9") |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Australian Compliance | RCM (AS/NZS CISPR 32) listed by Hikvision |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
